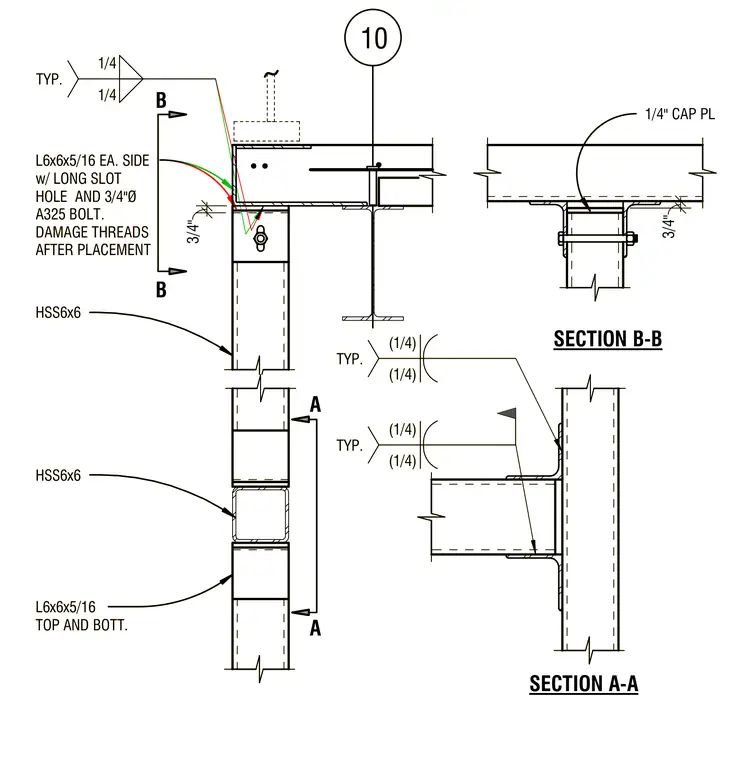

An HSS6x6 hollow structural section column with a quarter-inch cap plate connects to a metal deck edge. The connection incorporates L6x6x5/16 angles on each side with long slotted holes and three-quarter-inch diameter A325 bolts, with threads damaged after placement to allow movement. Additional L6x6x5/16 top and bottom angles and fillet welds typically sized at one-quarter inch secure the assembly. Sections A-A and B-B provide orthogonal views of the connection geometry and member alignment relative to the steel deck edge.
L6x6x5/16 EA. SIDE w/ LONG SLOT HOLE AND 3/4"Ø A325 BOLT. DAMAGE THREADS AFTER PLACEMENT 1/4 1/4 TYP. 10 A A HSS6x6 HSS6x6 L6x6x5/16 TOP AND BOTT. 3/4" (1/4) (1/4) TYP. (1/4) (1/4) TYP. SECTION A-A B B 3/4" SECTION B-B 1/4" CAP PL L6x6x5/16 EA. SIDE w/ LONG SLOT HOLE AND 3/4"Ø A325 BOLT. DAMAGE THREADS AFTER PLACEMENT 1/4 1/4 TYP. 10 A A HSS6x6 HSS6x6 L6x6x5/16 TOP AND BOTT. 3/4" (1/4) (1/4) TYP. (1/4) (1/4) TYP. SECTION A-A B B 3/4" SECTION B-B 1/4" CAP PL
