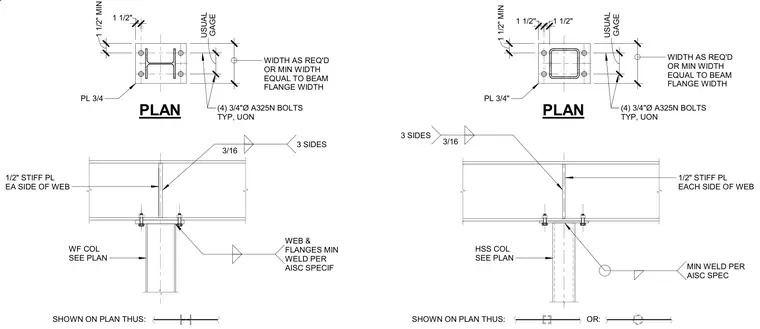

A beam framing connection is supported by either a wide flange or a hollow structural section column. The assembly incorporates a three-quarter-inch plate secured by four three-quarter-inch diameter ASTM A325N bolts, with plate width sized as required or matching the beam flange width. One-half-inch stiffener plates are welded to each side of the beam web using three-sixteenth-inch fillet welds on three sides. The column connects with minimum welds per American Institute of Steel Construction specifications on web and flanges, with standard plan symbols provided for orientation.
1/2" STIFF PL EA SIDE OF WEB WF COL SEE PLAN PLAN PL 3/4 (4) 3/4"Ø A325N BOLTS TYP, UON WIDTH AS REQ'D OR MIN WIDTH EQUAL TO BEAM FLANGE WIDTH GAGE USUAL SHOWN ON PLAN THUS: SHOWN ON PLAN THUS: HSS COL SEE PLAN 1/2" STIFF PL EACH SIDE OF WEB PLAN PL 3/4" (4) 3/4"Ø A325N BOLTS TYP, UON WIDTH AS REQ'D OR MIN WIDTH EQUAL TO BEAM FLANGE WIDTH GAGE USUAL 3/16 3 SIDES 3/16 3 SIDES MIN WELD PER AISC SPEC OR: WEB & FLANGES MIN WELD PER AISC SPECIF 1 1/2" 1 1/2" MIN 1 1/2" 1 1/2" 1 1/2" MIN
