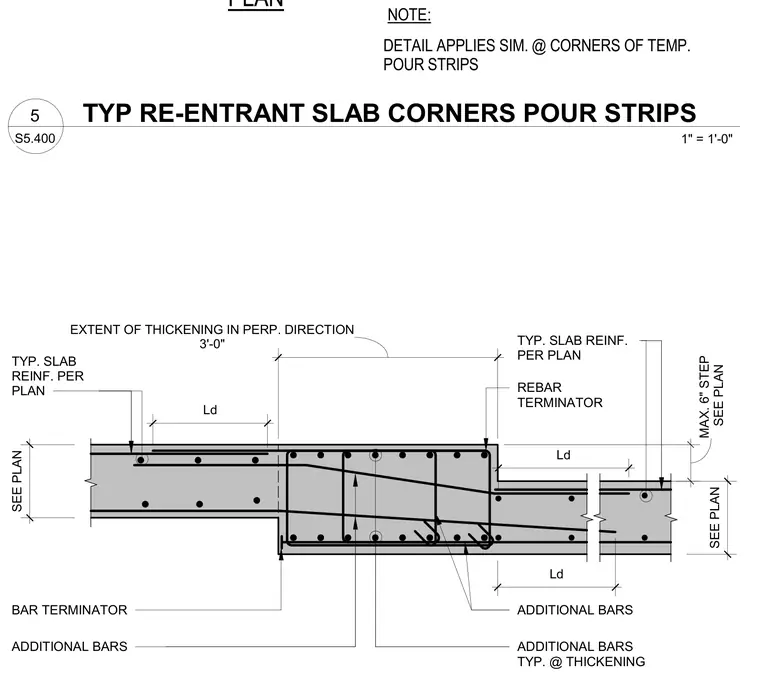

Reinforced concrete slab re-entrant corners at temporary pour strips feature localized slab thickening with additional reinforcing bars and development length extensions. Typical slab reinforcement continues per plan across the connection, supplemented by additional bars and bar terminators. The thickened zone extends three feet in the perpendicular direction with a maximum six-inch step as indicated on plan. This typical detail applies similarly at all corners of temporary pour strips.
PLAN NOTE: DETAIL APPLIES SIM. @ CORNERS OF TEMP. POUR STRIPS REBAR TERMINATOR EXTENT OF THICKENING IN PERP. DIRECTION 3'-0" ADDITIONAL BARS TYP. @ THICKENING TYP. SLAB REINF. PER PLAN Ld Ld ADDITIONAL BARS BAR TERMINATOR TYP. SLAB REINF. PER PLAN Ld ADDITIONAL BARS SEE PLAN MAX. 6" STEP SEE PLAN SEE PLAN S5.400 1" = 1'-0" 5 TYP RE-ENTRANT SLAB CORNERS POUR STRIPS
