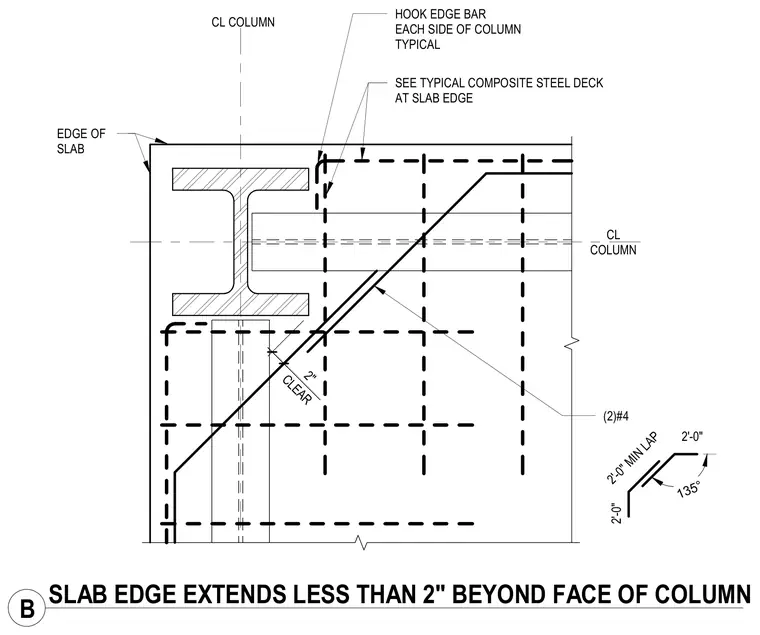

Concrete slab edge condition where the slab extends less than two inches beyond the face of the steel column. The assembly incorporates two number four reinforcing bars placed diagonally with a two-inch clear cover. Hook edge bars with a one-hundred-thirty-five-degree bend and a two-foot minimum lap are detailed at each side of the column. Composite steel deck extends to the slab edge per typical project details.
(2)#4 CL COLUMN CLEAR 2" CL COLUMN 135° 2'-0" 2'-0" 2'-0" MIN LAP HOOK EDGE BAR EACH SIDE OF COLUMN TYPICAL EDGE OF SLAB SEE TYPICAL COMPOSITE STEEL DECK AT SLAB EDGE B SLAB EDGE EXTENDS LESS THAN 2" BEYOND FACE OF COLUMN
