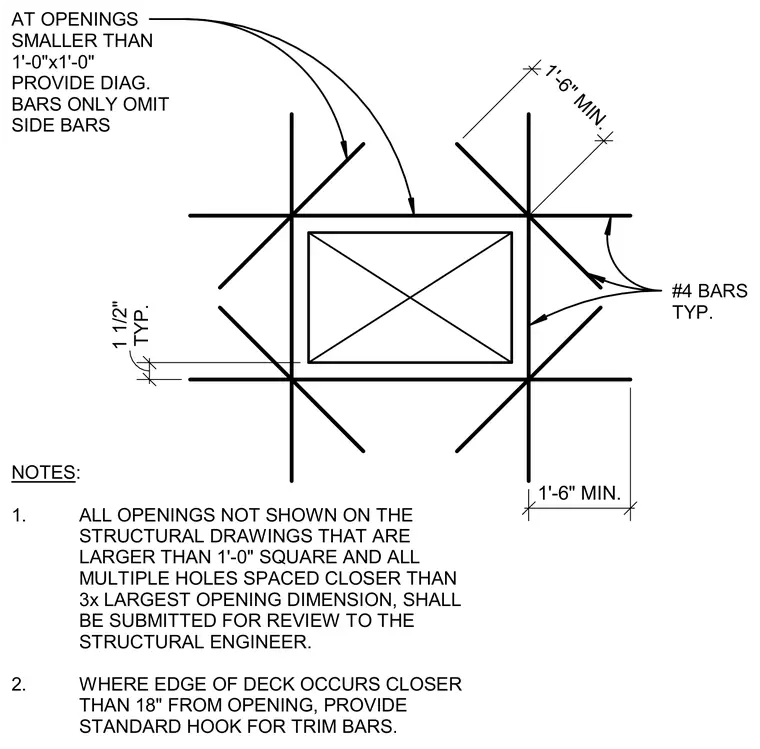

Reinforcing bar placement around slab or deck openings requires Number 4 bars placed diagonally at the corners and along the sides of the opening with a one-and-one-half-inch typical spacing. For openings smaller than one foot square, diagonal bars are provided while side bars are omitted. Trim bars require a one-foot-six-inch minimum extension beyond the opening corners. Standard hooks must be provided for trim bars where the edge of the deck occurs closer than eighteen inches from the opening.
#4 BARS TYP. AT OPENINGS SMALLER THAN 1'-0"x1'-0" PROVIDE DIAG. BARS ONLY OMIT SIDE BARS NOTES: 1. ALL OPENINGS NOT SHOWN ON THE STRUCTURAL DRAWINGS THAT ARE LARGER THAN 1'-0" SQUARE AND ALL MULTIPLE HOLES SPACED CLOSER THAN 3x LARGEST OPENING DIMENSION, SHALL BE SUBMITTED FOR REVIEW TO THE STRUCTURAL ENGINEER. 2. WHERE EDGE OF DECK OCCURS CLOSER THAN 18" FROM OPENING, PROVIDE STANDARD HOOK FOR TRIM BARS. 1'-6" MIN. TYP. 1 1/2" 1'-6" MIN.
