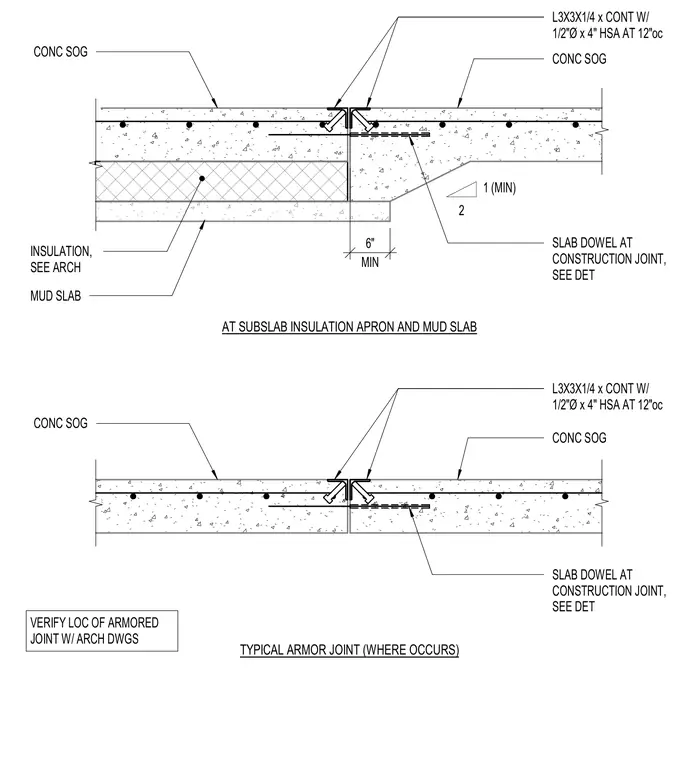

The armor joint assembly features continuous L3x3x1/4 steel angles anchored into the edges of the concrete slab-on-grade with one-half-inch diameter by 4-inch heavy-duty sleeve anchors at 12 inches on center. Slab dowels bridge the construction joint between adjacent concrete placements. Subslab insulation and a mud slab run beneath the concrete slab at the insulated apron condition.
INSULATION, SEE ARCH MUD SLAB CONC SOG CONC SOG MIN 6" 2 1 (MIN) AT SUBSLAB INSULATION APRON AND MUD SLAB CONC SOG TYPICAL ARMOR JOINT (WHERE OCCURS) L3X3X1/4 x CONT W/ 1/2"Ø x 4" HSA AT 12"oc L3X3X1/4 x CONT W/ 1/2"Ø x 4" HSA AT 12"oc CONC SOG SLAB DOWEL AT CONSTRUCTION JOINT, SEE DET SLAB DOWEL AT CONSTRUCTION JOINT, SEE DET VERIFY LOC OF ARMORED JOINT W/ ARCH DWGS
