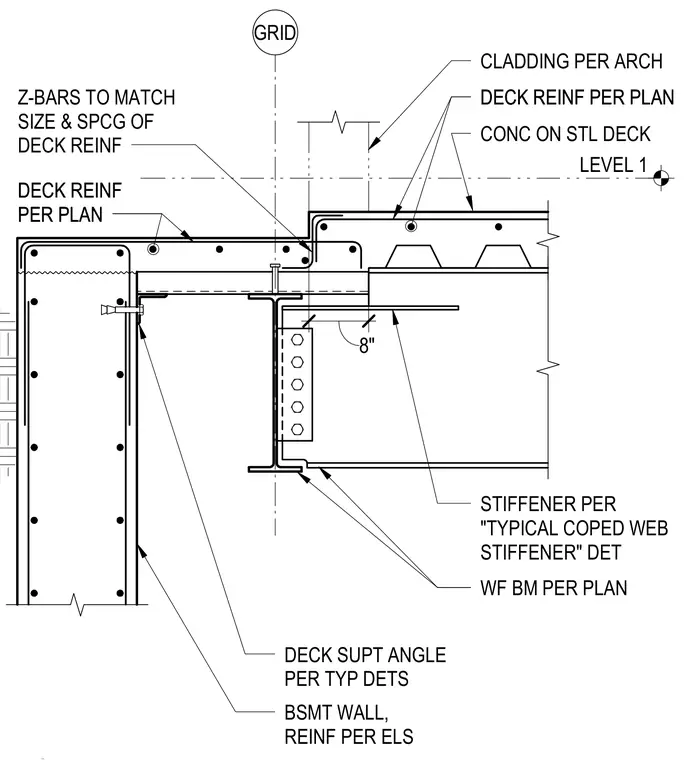

A wide flange beam connects to a concrete basement wall via a vertical shear tab with five bolts and a bottom-coped top flange stiffener plate. A deck support angle is anchored to the basement wall to carry the concrete on a steel deck slab spanning across the assembly. Deck reinforcement and Z-bars match the size and spacing specified per plan at Level 1, while exterior cladding aligns with the architectural grid.
LEVEL 1 GRID DECK REINF PER PLAN Z-BARS TO MATCH SIZE & SPCG OF DECK REINF CLADDING PER ARCH CONC ON STL DECK DECK REINF PER PLAN DECK REINF PER PLAN DECK REINF PER PLAN WF BM PER PLAN DECK SUPT ANGLE PER TYP DETS BSMT WALL, REINF PER ELS STIFFENER PER "TYPICAL COPED WEB STIFFENER" DET 8"
