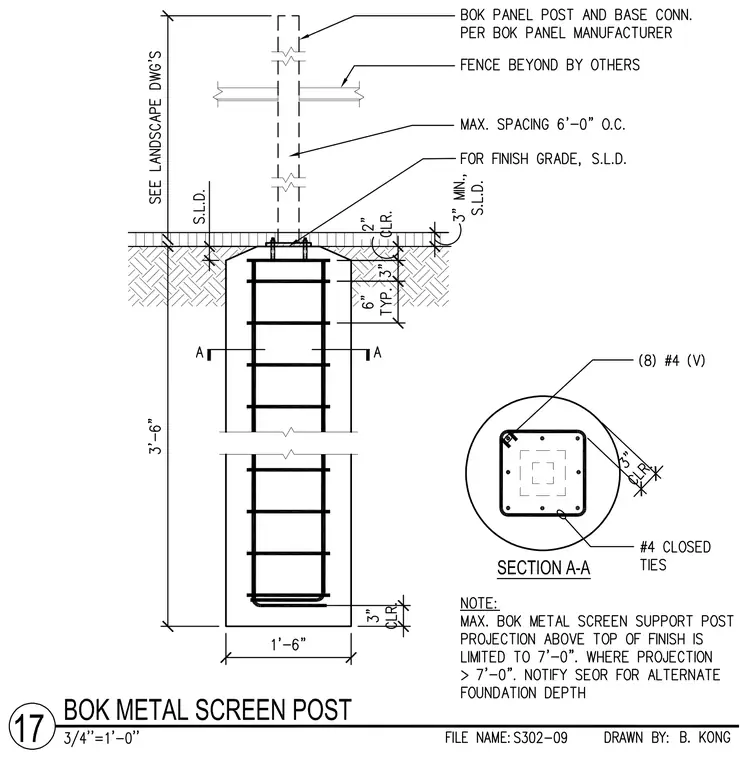

A reinforced concrete pier supports a Bok metal screen post and fence assembly with a maximum post spacing of 6'-0" on center. The foundation measures 1'-6" in width with a total depth of 3'-6", featuring 3" minimum concrete clearance at the bottom and sides. Internal reinforcement consists of eight vertical number 4 bars with number 4 closed ties at 6" typical spacing, detailed in Section A-A. The Bok panel post connects at the top of the pier per the manufacturer specifications, with fence components provided by others and finish grade referenced to structural levels.
