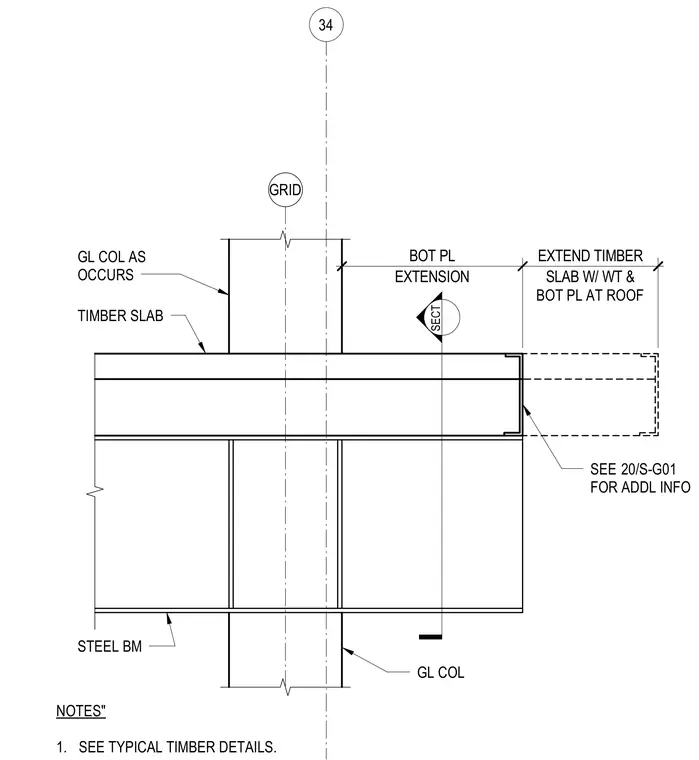

A timber slab frames into a glue-laminated column with a supporting steel beam beneath. The timber slab extends at the roof level utilizing a structural tee and bottom plate extension. Additional information for the extension is referenced to sheet 20/S-G01. Glue-laminated columns occur as required along the grid line.
SECT GRID STEEL BM GL COL TIMBER SLAB GL COL AS OCCURS EXTENSION BOT PL SLAB W/ WT & EXTEND TIMBER SEE FOR ADDL INFO 20/S-G01 BOT PL AT ROOF NOTES" 1. SEE TYPICAL TIMBER DETAILS. 34
