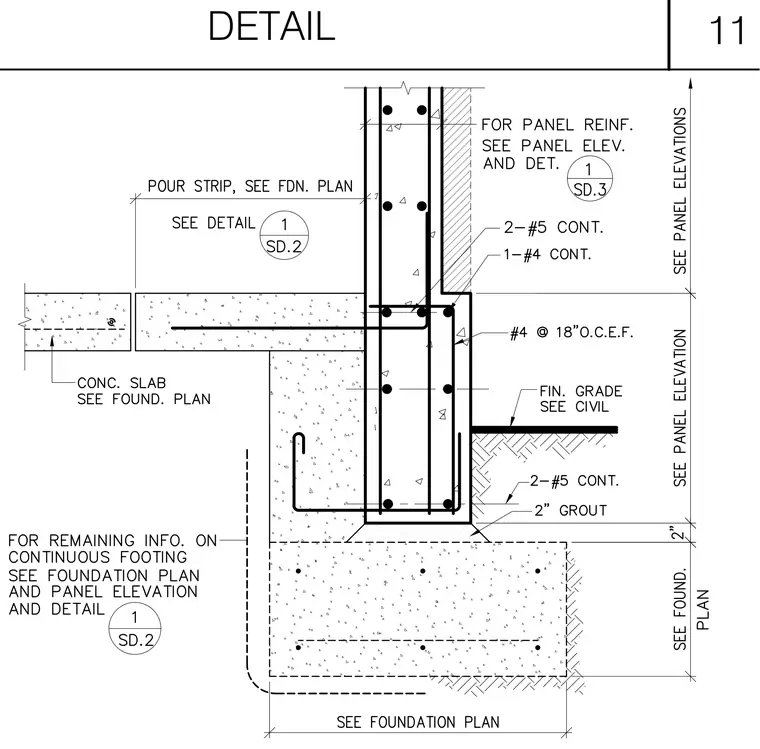

A concrete stem wall bears on a continuous concrete footing with a two-inch grout layer, reinforced by two continuous number five bars at the bottom and vertical number four bars spaced at eighteen inches on center each face. A concrete slab connects to the stem wall with a pour strip as sized per the foundation plan, featuring continuous horizontal reinforcing bars including two number five bars and one number four bar. Finished grade is located per civil drawings adjacent to the exterior face of the stem wall. Panel reinforcing details and remaining foundation information are referenced to corresponding structural drawings.
