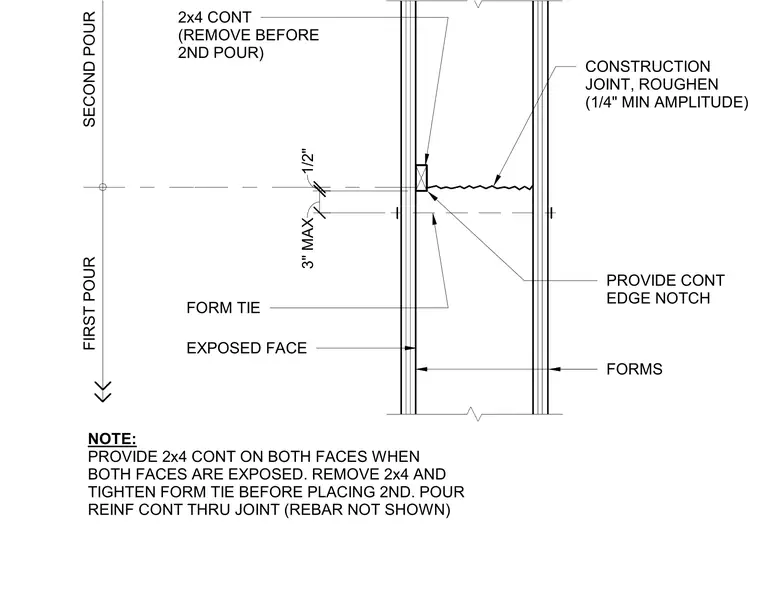

This concrete wall construction joint connects a first pour to a subsequent second pour with a roughened interface of one-quarter inch minimum amplitude. A continuous edge notch is formed along the joint, with form ties positioned three inches maximum below the interface. A continuous two-by-four wood member is placed at the joint and removed before the second pour, after which form ties are tightened. Continuous reinforcing steel extends through the joint.
SECOND POUR FIRST POUR 2x4 CONT (REMOVE BEFORE 2ND POUR) CONSTRUCTION JOINT, ROUGHEN (1/4" MIN AMPLITUDE) PROVIDE CONT EDGE NOTCH FORM TIE EXPOSED FACE FORMS NOTE: PROVIDE 2x4 CONT ON BOTH FACES WHEN BOTH FACES ARE EXPOSED. REMOVE 2x4 AND TIGHTEN FORM TIE BEFORE PLACING 2ND. POUR REINF CONT THRU JOINT (REBAR NOT SHOWN) 1/2" 3" MAX
