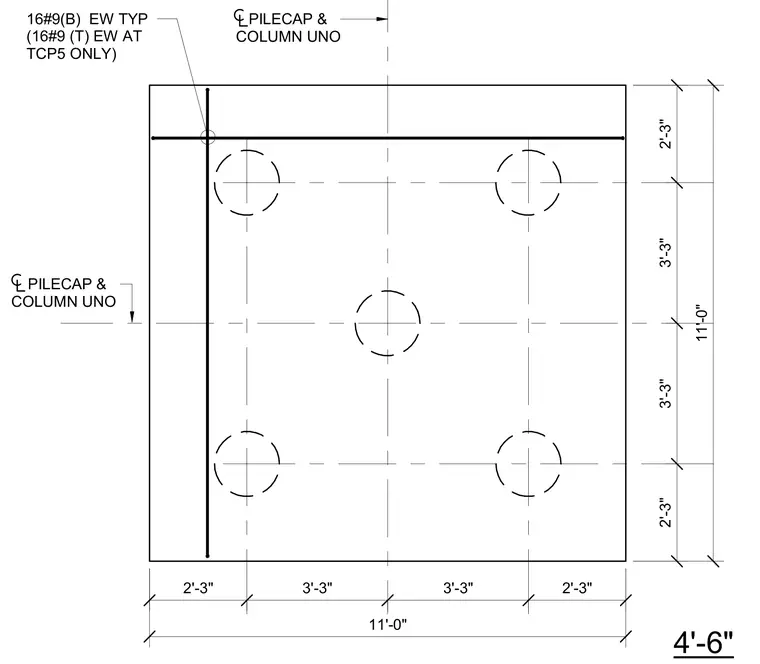

This structural plan detail shows an eleven-foot-square pile cap supported by five piles arranged in a square pattern with a center pile. The foundation element is reinforced with number nine bars running each way on the bottom typically, with additional top reinforcing bars at pile cap type five only. Overall dimensions span eleven feet in both directions with symmetrical two-foot-three-inch and three-foot-three-inch spacing grids centered on the pile cap and column axes.
4'-6" PILECAP & COLUMN UNO 16#9(B) EW TYP (16#9 (T) EW AT TCP5 ONLY) PILECAP & COLUMN UNO 2'-3" 3'-3" 3'-3" 2'-3" 11'-0" 2'-3" 3'-3" 3'-3" 2'-3" 11'-0"
