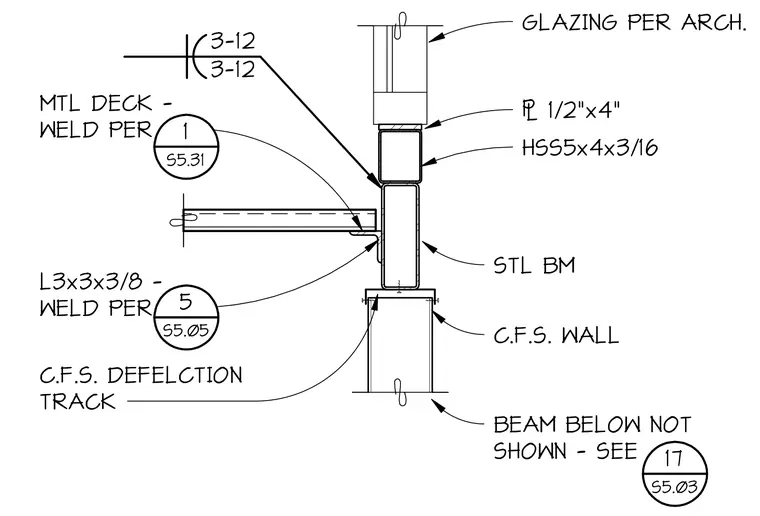

A cold-formed steel deflection track at the head of a cold-formed steel wall supports a steel beam. A 5x4x3/16 hollow structural section rests above the steel beam with a 1/2"x4" plate connection beneath the architectural glazing system. The metal deck connects to the steel beam via welds specified on sheet S5.31. An L3x3x3/8 angle connects the structural members with welds detailed on sheet S5.05. A cold-formed steel wall is positioned below with a deflection track, referencing sheet S5.03.
GLAZING PER ARCH. MTL DECK - WELD PER STL BM 1 S5.31 L3x3x3/8 - WELD PER 5 S5.05 C.F.S. DEFELCTION TRACK 17 S5.03 C.F.S. WALL BEAM BELOW NOT SHOWN - SEE 3-12 3-12 ( 1/2"x4" HSS5x4x3/16
