Concrete slab-on-grade joint configurations incorporate metal joints, formed joints, and control joints. Construction joints feature half-inch diameter by eighteen-inch smooth dowels at sixteen inches on center or speed dowels with number four by twenty-four-inch bars, paired with a joint cap and flexible sealant. Slabs include typical continuous reinforcing and thickened edges with a minimum eight-inch dimension and two-inch minimum drop. Control joints specify a depth of D over four using plastic construction joints, one-eighth-inch Masonite, or a tooled joint filled with flexible sealant, or an alternative sawcut within eight hours of concrete placement filled with joint sealant compound.

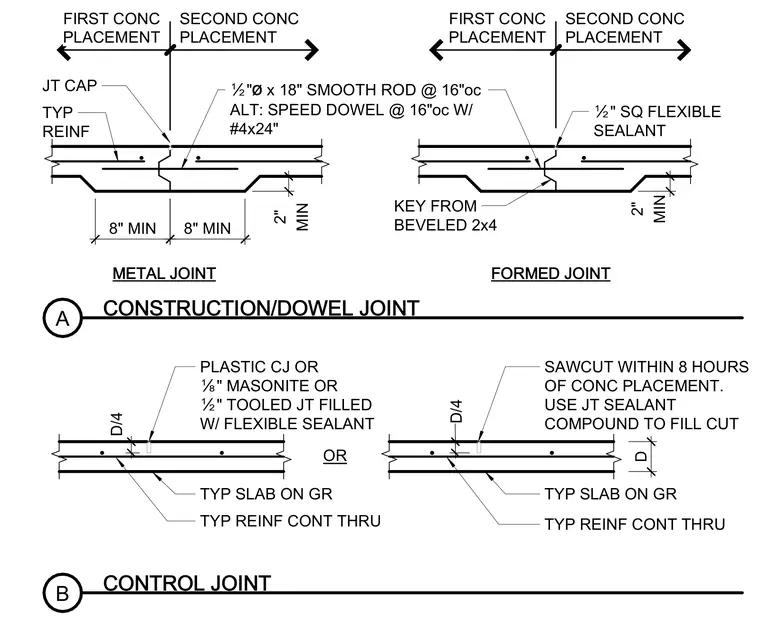

SECOND CONC PLACEMENT FIRST CONC PLACEMENT SECOND CONC PLACEMENT FIRST CONC PLACEMENT METAL JOINT FORMED JOINT CONSTRUCTION/DOWEL JOINT CONTROL JOINT OR 8" MIN 8" MIN MIN 2" MIN 2" D/4 TYP REINF JT CAP Ï"ø x 18" SMOOTH ROD @ 16"oc Ï" SQ FLEXIBLE SEALANT KEY FROM BEVELED 2x4 TYP SLAB ON GR TYP REINF CONT THRU TYP SLAB ON GR TYP REINF CONT THRU SAWCUT WITHIN 8 HOURS OF CONC PLACEMENT. USE JT SEALANT COMPOUND TO FILL CUT PLASTIC CJ OR É" MASONITE OR Ï" TOOLED JT FILLED W/ FLEXIBLE SEALANT D/4 D A B ALT: SPEED DOWEL @ 16"oc W/ #4x24"
