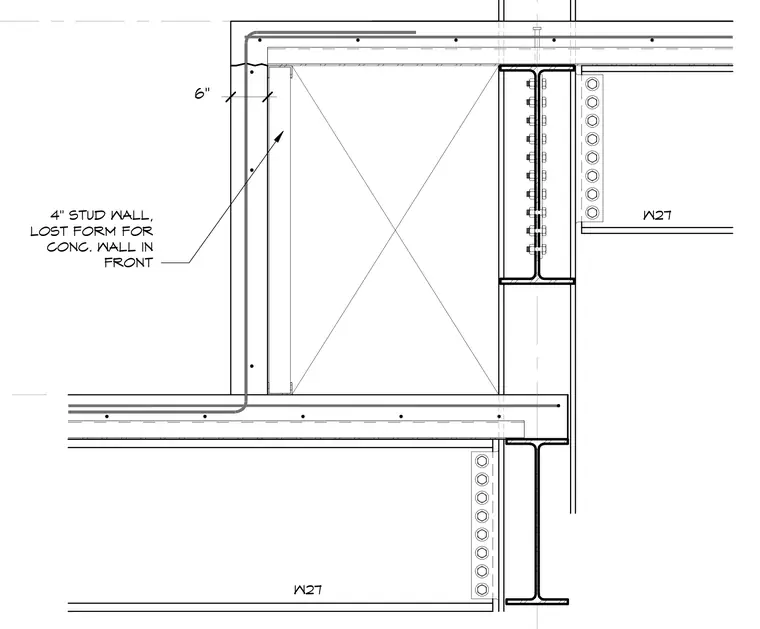

A four-inch stud wall acts as a lost form for a six-inch concrete wall placed in front of a structural steel frame. Wide flange W27 steel beams frame into the column connection with bolted shear tabs. Reinforcing steel extends through the concrete assembly tied back to the structural grid.
4" STUD WALL, LOST FORM FOR CONC. WALL IN FRONT 6" W27 W27
