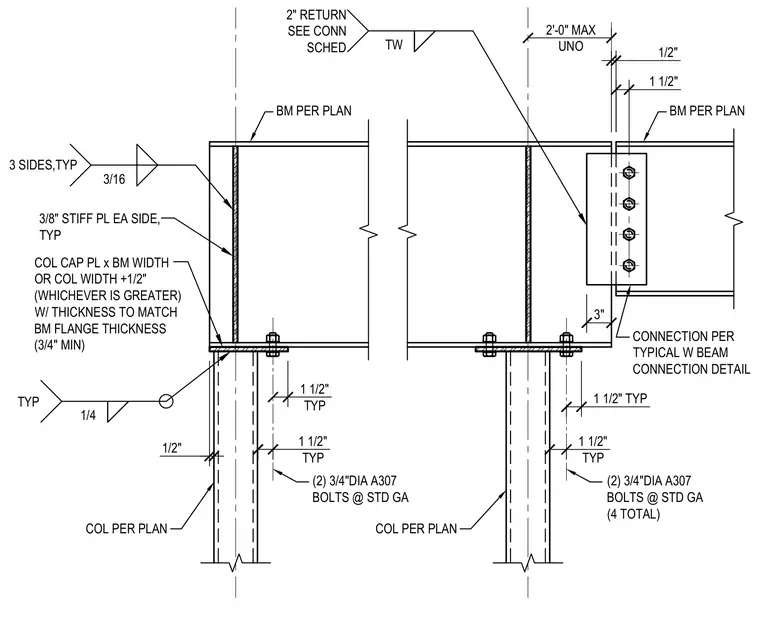

This structural steel connection features a wide flange beam bearing on a column cap plate sized per plan with a thickness matching the beam flange and a minimum thickness of three-quarters of an inch. Three-eighths-inch stiffener plates are welded to each side of the beam web using three-sixteenth-inch fillet welds with two-inch returns on three sides typically. The beam connects to the column cap using two three-quarter-inch-diameter A307 bolts at standard gauge per side. Additional beam connections use four three-quarter-inch-diameter A307 bolts at standard gauge as detailed in the typical wide flange beam connection detail.
3" 2'-0" MAX UNO 1 1/2" TYP 1/2" 1 1/2" TYP 1/2" 1 1/2" TYP 1 1/2" TYP 3/8" STIFF PL EA SIDE, TYP COL CAP PL x BM WIDTH OR COL WIDTH +1/2" (WHICHEVER IS GREATER) W/ THICKNESS TO MATCH BM FLANGE THICKNESS (3/4" MIN) (2) 3/4"DIA A307 BOLTS @ STD GA (2) 3/4"DIA A307 BOLTS @ STD GA (4 TOTAL) CONNECTION PER TYPICAL W BEAM CONNECTION DETAIL COL PER PLAN COL PER PLAN 1 1/2" 3/16 TW 2" RETURN SEE CONN SCHED 1/4 TYP BM PER PLAN BM PER PLAN 3 SIDES,TYP
