Structural · S-86G67

Tilt-Up Concrete Wall Lintel and Opening Reinforcement Detail

Elements

Beams Walls Foundations / Footings Arches Reinforcing

Connections

About this detail

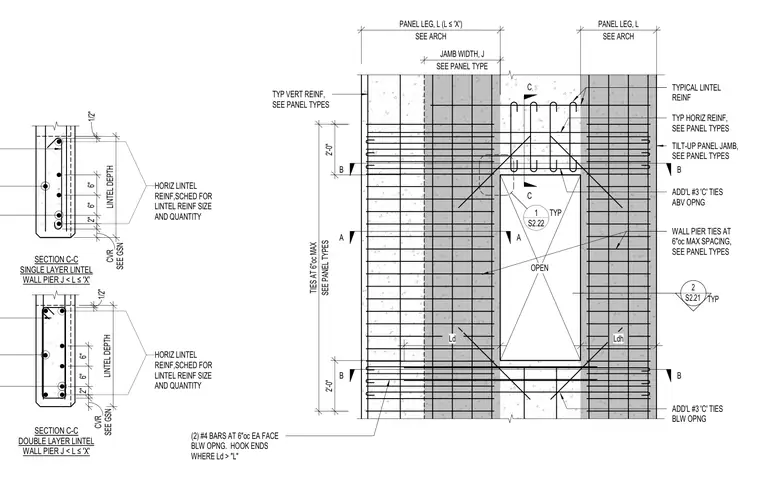

Reinforcing steel layout around a wall opening in a tilt-up concrete panel. Horizontal lintel reinforcement spans the top of the opening, with sizing and quantity determined by the schedule, supplemented by additional number 3 'C' ties placed above and below the opening. Wall piers feature vertical and horizontal reinforcing bars with ties spaced at six inches on center maximum. Below the opening, two number 4 bars are provided at six inches on center on each face with hooked ends where development length exceeds the available dimension. Cross-sections through single-layer and double-layer lintels define concrete cover and vertical bar placement.
