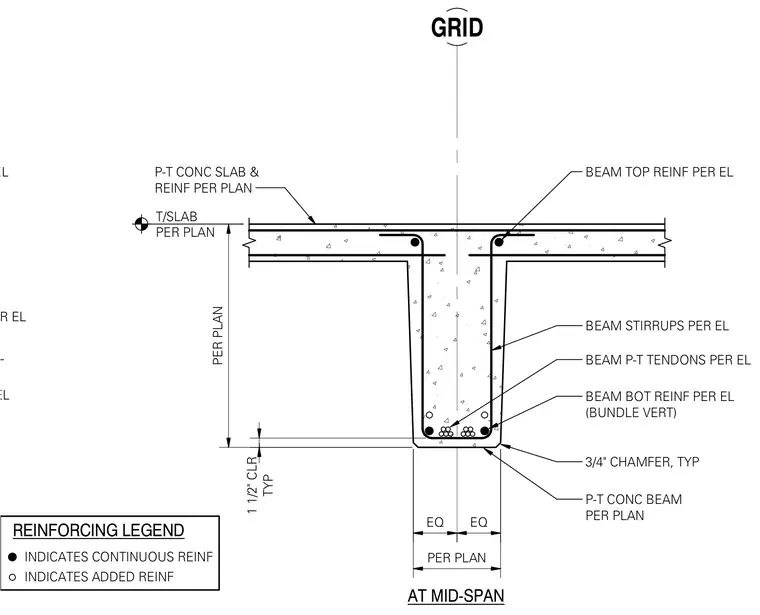

This structural section details a post-tensioned concrete beam cast monolithically with a post-tensioned concrete slab. The assembly features top and bottom beam reinforcing bars sized per the structural elevation, along with post-tensioned tendons and vertical beam stirrups. The bottom longitudinal reinforcement includes bundled vertical bars, while a reinforcing legend distinguishes continuous reinforcing from added reinforcing at mid-span. The beam profile incorporates a three-quarter-inch chamfer at the bottom corners and maintains a one-and-a-half-inch concrete clearance from the stirrup to the form face.
BEAM TOP REINF PER EL BEAM P-T TENDONS PER EL BEAM STIRRUPS PER EL BEAM BOT REINF PER EL REINFORCING LEGEND INDICATES CONTINUOUS REINF INDICATES ADDED REINF AT MID-SPAN PER PLAN TYP 1 1/2" CLR P-T CONC SLAB & REINF PER PLAN GRID BEAM TOP REINF PER EL BEAM P-T TENDONS PER EL BEAM STIRRUPS PER EL BEAM BOT REINF PER EL (BUNDLE VERT) 3/4" CHAMFER, TYP P-T CONC BEAM PER PLAN PER PLAN EQ EQ T/SLAB PER PLAN
