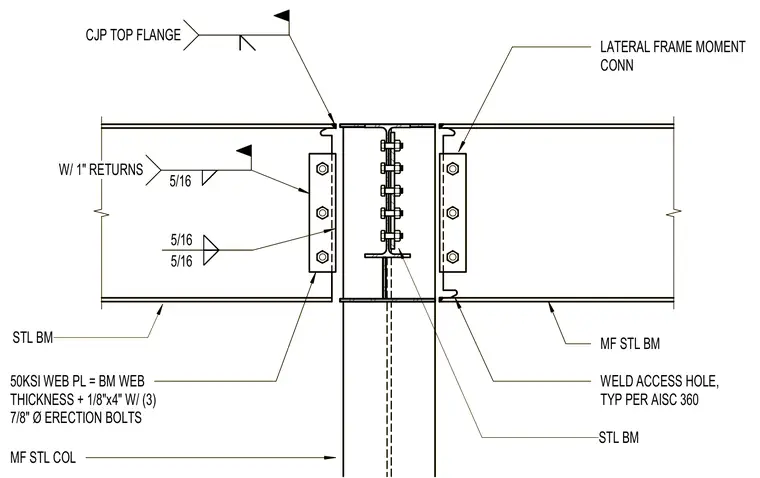

A structural steel moment frame connection joins moment-frame steel beams to a structural steel column. The top flange of the beam connects to the column flange using a complete joint penetration weld with a standard weld access hole per AISC 360. A web plate sized to the beam web thickness plus one-eighth inch by four inches connects the beam web to the column flange using three seven-eighths inch diameter erection bolts and five-sixteenths inch fillet welds with one-inch returns.
STL BM MF STL BM MF STL COL WELD ACCESS HOLE, TYP PER AISC 360 50KSI WEB PL = BM WEB THICKNESS + 1/8"x4" W/ (3) 7/8" Ø ERECTION BOLTS LATERAL FRAME MOMENT CONN STL BM 5/16 5/16 5/16 W/ 1" RETURNS CJP TOP FLANGE STL BM MF STL BM MF STL COL WELD ACCESS HOLE, TYP PER AISC 360 50KSI WEB PL = BM WEB THICKNESS + 1/8"x4" W/ (3) 7/8" Ø ERECTION BOLTS LATERAL FRAME MOMENT CONN STL BM 5/16 5/16 5/16 W/ 1" RETURNS CJP TOP FLANGE
