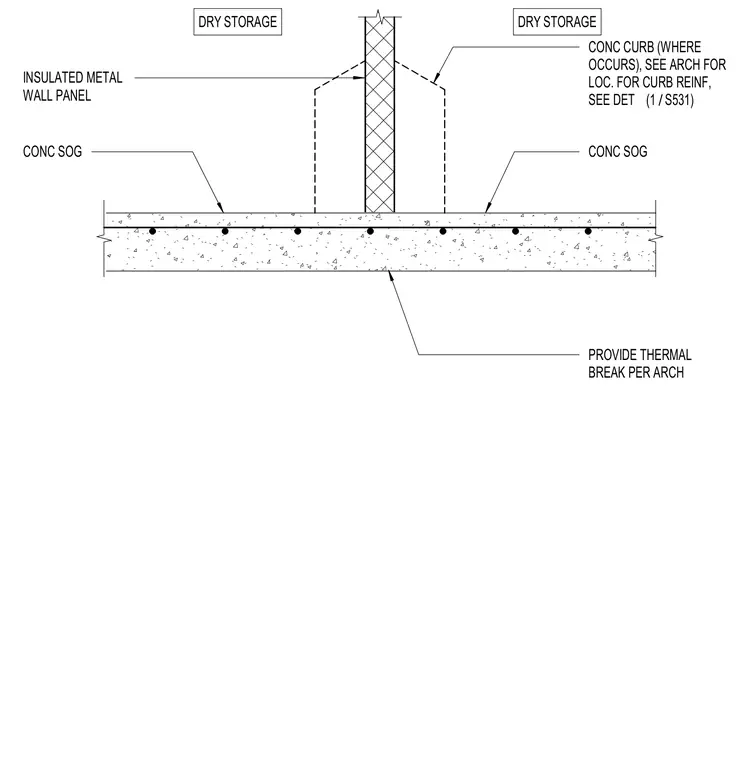

An interior insulated metal wall panel or partition meets a concrete slab on grade. A concrete curb is provided where indicated, with curb reinforcement detailed on a separate drawing. A thermal break is installed beneath the concrete slab on grade per architectural specifications. The slab on grade continues across the dry storage area on both sides of the wall.
INSULATED METAL WALL PANEL CONC SOG CONC SOG CONC CURB (WHERE OCCURS), SEE ARCH FOR LOC. FOR CURB REINF, SEE DET / (1 S531) DRY STORAGE DRY STORAGE PROVIDE THERMAL BREAK PER ARCH
