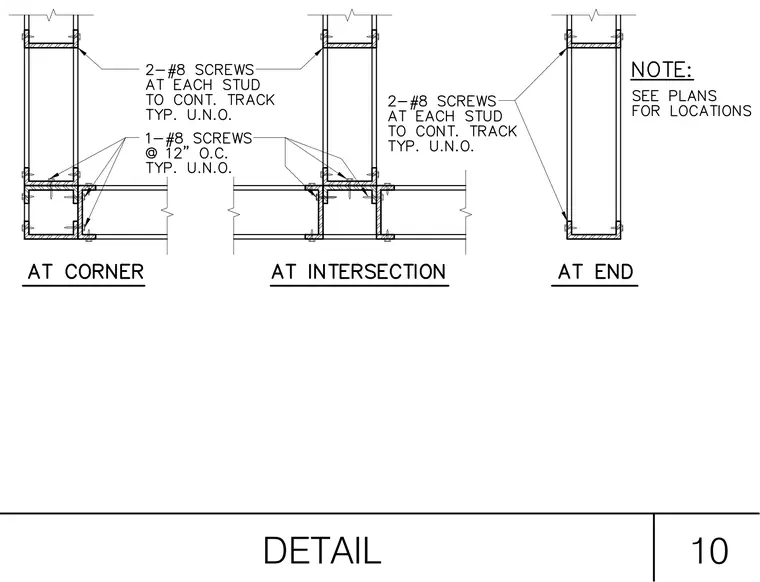

Cold-formed steel stud framing details show connection layouts at corners, intersections, and free ends using continuous tracks. Two number 8 screws fasten each stud to the continuous track at typical locations unless otherwise noted. Additional number 8 screws are spaced at twelve inches on center where indicated. Locations for these assemblies are specified on the architectural and structural plans.
