A wide-flange steel column connects to a supporting beam below using a three-quarter-inch A36 steel base plate secured by four three-quarter-inch diameter anchor bolts. One-half-inch stiffener plates are welded to each side of the column web with quarter-inch fillet welds, matching the width of the column flange above. A one-half-inch minimum shear tab plate connects to the column flange, utilizing five-sixteenths and three-eighths fillet welds. Edge distances and bolt spacings follow typical American Institute of Steel Construction specifications.

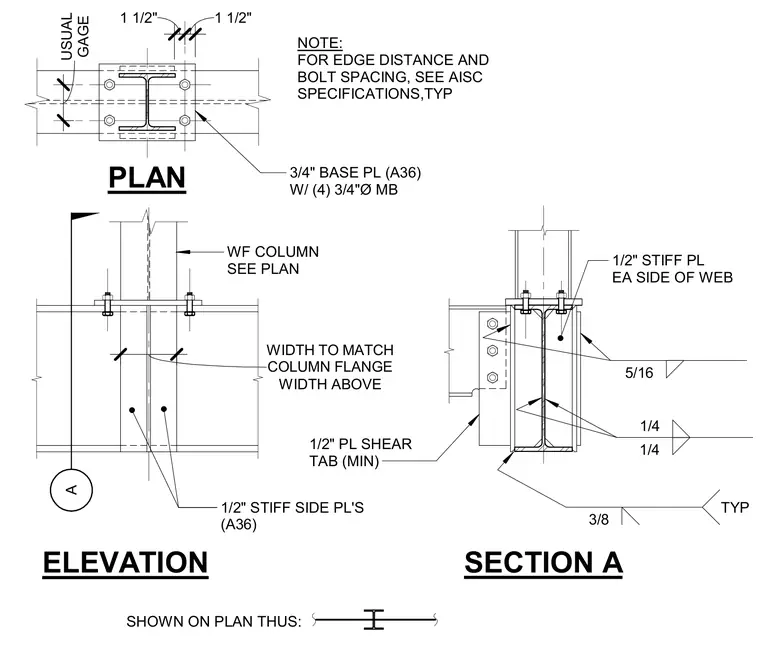

A SHOWN ON PLAN THUS: SECTION A PLAN ELEVATION WF COLUMN SEE PLAN NOTE: FOR EDGE DISTANCE AND BOLT SPACING, SEE AISC SPECIFICATIONS,TYP 1/2" STIFF SIDE PL'S (A36) 1/2" PL SHEAR TAB (MIN) 3/4" BASE PL (A36) W/ (4) 3/4"Ø MB 1/2" STIFF PL EA SIDE OF WEB WIDTH ABOVE WIDTH TO MATCH COLUMN FLANGE GAGE USUAL 5/16 1/4 1/4 3/8 TYP 1 1/2" 1 1/2"
