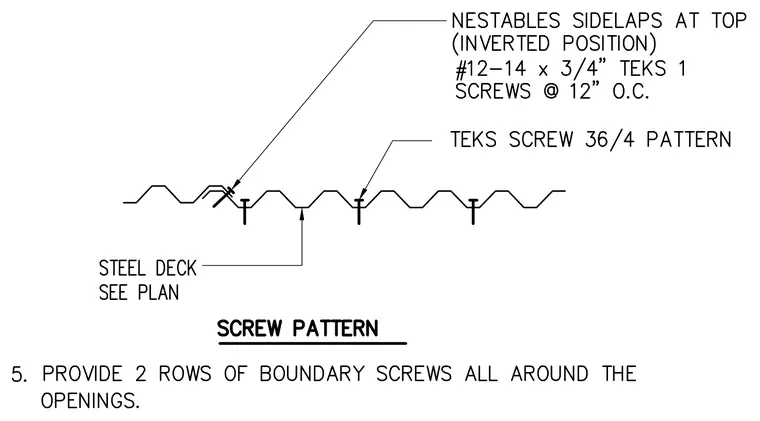

Steel deck panels nest together at sidelaps in an inverted position and fasten with number 12-14 by three-quarter-inch Teks 1 screws spaced at twelve inches on center. The deck profile utilizes a Teks screw thirty-six over four pattern with steel deck profiles sized per plan. Boundary screws are installed in two rows all around deck openings.
