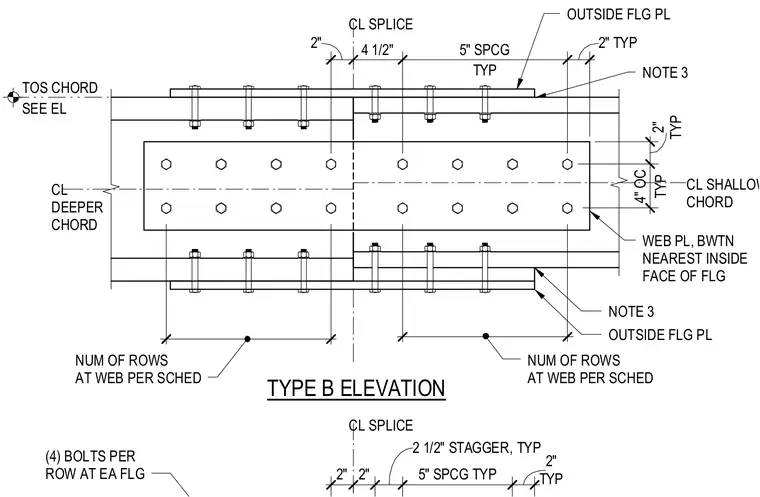

This structural detail shows a bolted chord splice connecting a deeper chord to a shallower chord member. Outside flange plates bridge the chord transition with four bolts per row at each flange and typical 5-inch spacing. A web plate is positioned between the nearest inside faces of the flanges, utilizing multiple rows of bolts governed by a schedule with 4-inch on-center spacing and a 2-1/2-inch stagger. Centerline splice marks align the connection while dimensional callouts establish edge distances and fastener spacing.
TYPE B ELEVATION CL SPLICE CL SHALLOWER CHORD OUTSIDE FLG PL WEB PL, BWTN NEAREST INSIDE FACE OF FLG NOTE 3 OUTSIDE FLG PL NUM OF ROWS AT WEB PER SCHED NUM OF ROWS AT WEB PER SCHED 2" 4 1/2" TYP 5" SPCG 2" TYP 15" 15" (4) BOLTS PER ROW AT EA FLG CL SPLICE 2" 2" 2 1/2" STAGGER, TYP 5" SPCG TYP TYP 2" TYP 4" OC TYP 2" CL DEEPER CHORD SEE EL TOS CHORD NOTE 3
