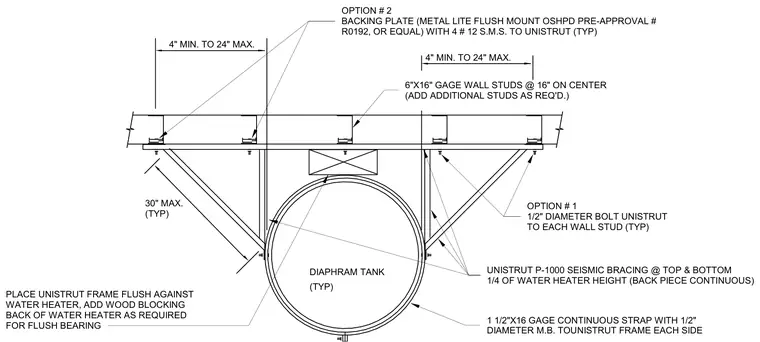

Seismic bracing for a water heater or diaphragm tank mounted against six-inch sixteen-gauge wall studs spaced at sixteen inches on center, with additional studs added as required. The assembly utilizes Unistrut P-1000 seismic bracing channels placed at the top and bottom quarters of the tank height, featuring a continuous back piece placed flush against the tank with wood blocking added at the rear for flush bearing. A one-and-a-half-inch by sixteen-gauge continuous strap connects to the Unistrut frame using half-inch diameter machine bolts on each side. Two connection options are provided for securing the Unistrut frame to the wall structure: Option One uses half-inch diameter bolts securing the Unistrut to each wall stud with a maximum thirty-inch spacing, while Option Two employs a metal lite flush mount backing plate with four number twelve sheet metal screws fastening to the Unistrut.
PLACE UNISTRUT FRAME FLUSH AGAINST WATER HEATER, ADD WOOD BLOCKING BACK OF WATER HEATER AS REQUIRED FOR FLUSH BEARING 1 1/2"X16 GAGE CONTINUOUS STRAP WITH 1/2" DIAMETER M.B. TOUNISTRUT FRAME EACH SIDE UNISTRUT P-1000 SEISMIC BRACING @ TOP & BOTTOM 1/4 OF WATER HEATER HEIGHT (BACK PIECE CONTINUOUS) (TYP) DIAPHRAM TANK 4" MIN. TO 24" MAX. OPTION # 1 1/2" DIAMETER BOLT UNISTRUT TO EACH WALL STUD (TYP) 30" MAX. (TYP) 4" MIN. TO 24" MAX. 6"X16" GAGE WALL STUDS @ 16" ON CENTER (ADD ADDITIONAL STUDS AS REQ'D.) OPTION # 2 BACKING PLATE (METAL LITE FLUSH MOUNT OSHPD PRE-APPROVAL # R0192, OR EQUAL) WITH 4 # 12 S.M.S. TO UNISTRUT (TYP)
