Structural · S-85REN

Concrete Pad Dowel and Curb Anchorage Detail

Materials

Concrete

Elements

Beams Floors / Slabs Site / Paving Anchors / Embeds Reinforcing

Connections

Base Plate / Anchorage Rebar Splice / Development Embed Plate

About this detail

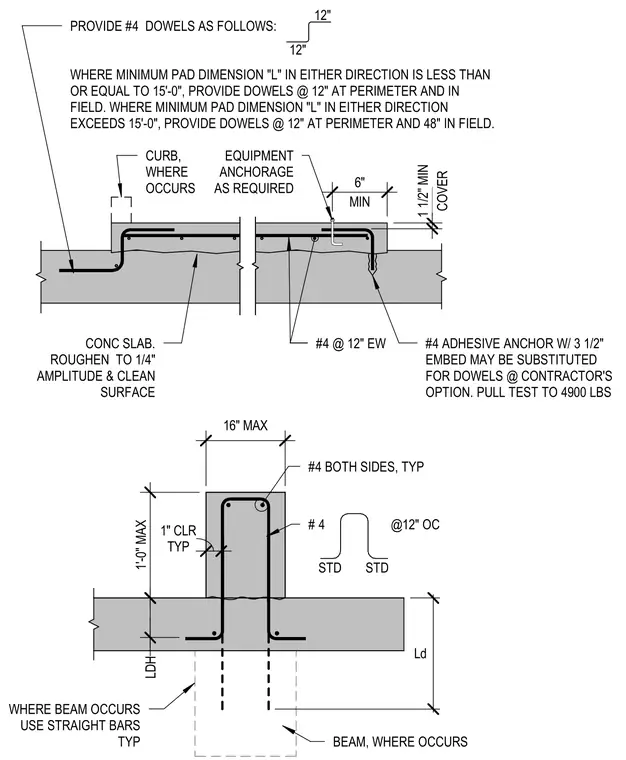

Concrete dowel and curb anchorage specifications for concrete slabs. Number 4 dowels are spaced at twelve inches on center at the perimeter and in the field depending on pad dimensions, with rough concrete slab surfaces specified to a one-quarter-inch amplitude. An optional number 4 adhesive anchor with a three-and-one-half-inch embedment requires a pull test to 4,900 pounds. Equipment anchorage is provided as required with a minimum six-inch cover and one-and-one-half-inch minimum concrete cover. Where beams occur, straight bars and number 4 bars in each way are detailed with standard hooks and a one-inch typical clearance.
