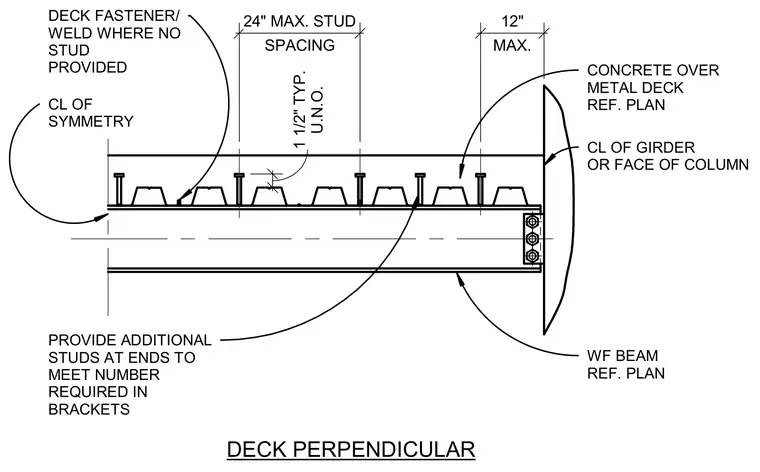

Concrete over metal deck spans perpendicular to a wide-flange beam with shear studs welded through the deck. Additional studs are provided at ends to meet the number required in brackets. Deck fasteners or welds are installed where no stud is provided. Stud spacing is twenty-four inches maximum, with a twelve-inch maximum spacing at ends and a one-and-one-half-inch typical dimension unless noted otherwise.
CL OF GIRDER OR FACE OF COLUMN CONCRETE OVER METAL DECK REF. PLAN WF BEAM REF. PLAN DECK FASTENER/ WELD WHERE NO STUD PROVIDED CL OF SYMMETRY PROVIDE ADDITIONAL STUDS AT ENDS TO MEET NUMBER REQUIRED IN BRACKETS MAX. 12" SPACING 24" MAX. STUD DECK PERPENDICULAR U.N.O. 1 1/2" TYP.
