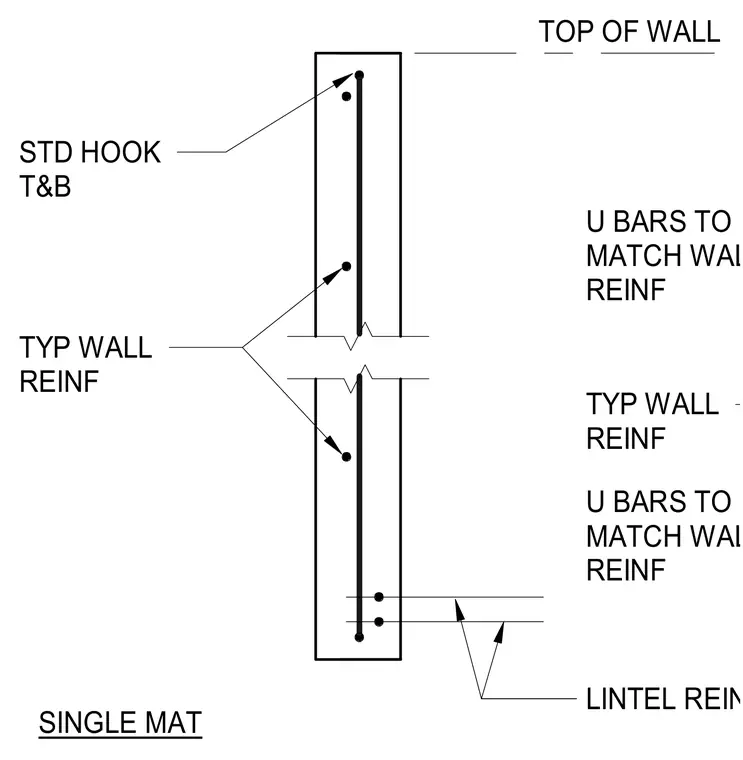

This concrete wall section details the lintel and top of wall reinforcing layout using a single mat of reinforcement. U-bars match the typical wall reinforcing and feature standard hooks at the top and bottom. Lintel reinforcing is integrated at the base of the section to tie into the wall assembly.
SINGLE MAT LINTEL REINF TOP OF WALL U BARS TO MATCH WALL REINF TYP WALL REINF U BARS TO MATCH WALL REINF STD HOOK T&B TYP WALL REINF
