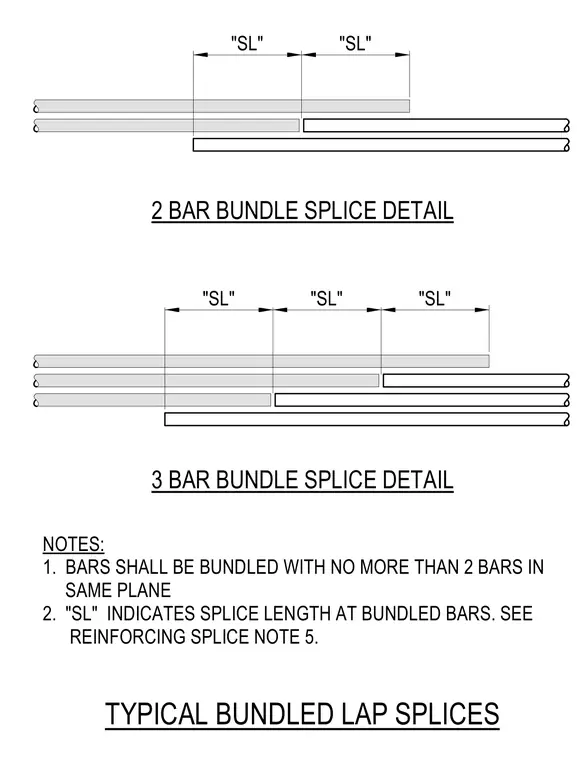

Reinforcing bar lap splices for bundled bars show staggered lap lengths denoted by SL. Bars are bundled with no more than two bars in the same plane. Two-bar and three-bar bundle splice configurations illustrate the required overlap spacing.
"SL" "SL" "SL" "SL" "SL" NOTES: 1. BARS SHALL BE BUNDLED WITH NO MORE THAN 2 BARS IN SAME PLANE 2. "SL" INDICATES SPLICE LENGTH AT BUNDLED BARS. SEE REINFORCING SPLICE NOTE 5. 3 BAR BUNDLE SPLICE DETAIL TYPICAL BUNDLED LAP SPLICES 2 BAR BUNDLE SPLICE DETAIL
