A full depth shear plate connects a non-braced frame beam to a frame beam web, utilizing high-strength bolts sized per the structural schedule. The shear plate thickness varies by beam depth "D", specified as seven-sixteenths of an inch for depths under twenty-four inches and nine-sixteenths of an inch for depths over twenty-seven inches, applied to each side of the girder. Beam flanges are coped as required, maintaining a "K" distance per the AISC manual. Fillet welds secure the connection components, with sizing specified as five-sixteenths of an inch for depths under twenty-four inches and three-eighths of an inch for depths over twenty-seven inches.

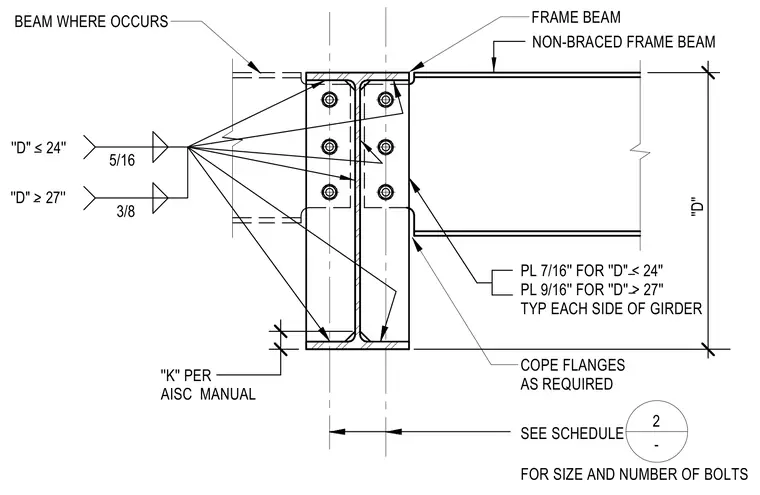

''D'' 5/16 3/8 SEE SCHEDULE FOR SIZE AND NUMBER OF BOLTS COPE FLANGES AS REQUIRED PL 7/16'' FOR ''D" < 24'' PL 9/16'' FOR ''D'' > 27'' TYP EACH SIDE OF GIRDER NON-BRACED FRAME BEAM FRAME BEAM BEAM WHERE OCCURS ''K'' PER AISC MANUAL ''D" < 24'' ''D" > 27'' 2 -
