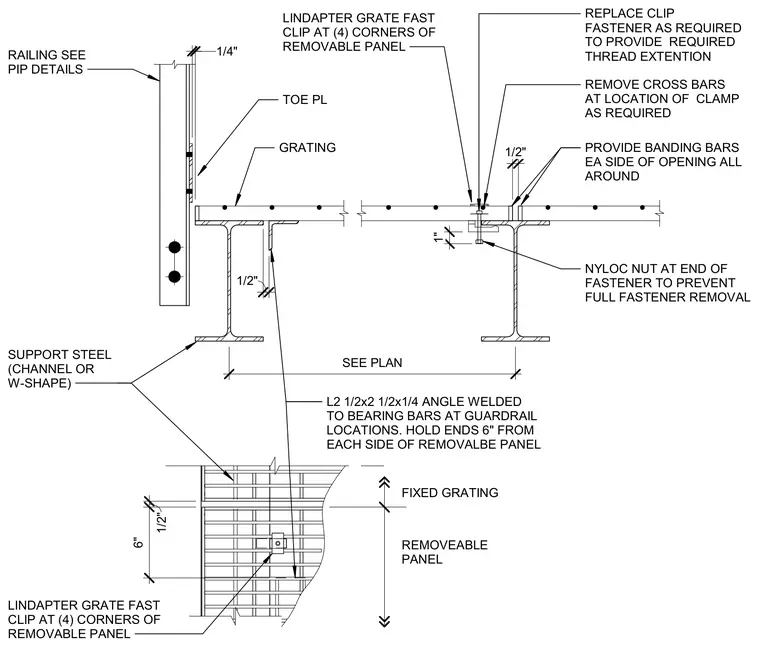

A removable steel grating panel is supported by structural steel framing such as a channel or wide-flange shape, with a one-quarter-inch toe plate welded to the railing. A two-and-a-half by two-and-a-half by one-quarter-inch angle is welded to the bearing bars at guardrail locations, held six inches from each side of the removable panel. Banding bars are provided on each side of the opening all around with a half-inch clearance. Lindapter grate fast clips are installed at the four corners of the removable panel. Cross bars are removed at the location of the clamp as required, and a nyloc nut is fitted at the end of the fastener to prevent full fastener removal.
RAILING SEE PIP DETAILS 1/4" TOE PL GRATING SUPPORT STEEL (CHANNEL OR W-SHAPE) L2 1/2x2 1/2x1/4 ANGLE WELDED TO BEARING BARS AT GUARDRAIL LOCATIONS. HOLD ENDS 6" FROM EACH SIDE OF REMOVALBE PANEL 1/2" PROVIDE BANDING BARS EA SIDE OF OPENING ALL AROUND 1/2" SEE PLAN REMOVE CROSS BARS AT LOCATION OF CLAMP AS REQUIRED NYLOC NUT AT END OF FASTENER TO PREVENT FULL FASTENER REMOVAL 1" REPLACE CLIP FASTENER AS REQUIRED TO PROVIDE REQUIRED THREAD EXTENTION LINDAPTER GRATE FAST CLIP AT (4) CORNERS OF REMOVABLE PANEL 6" 1/2" LINDAPTER GRATE FAST CLIP AT (4) CORNERS OF REMOVABLE PANEL FIXED GRATING REMOVEABLE PANEL
