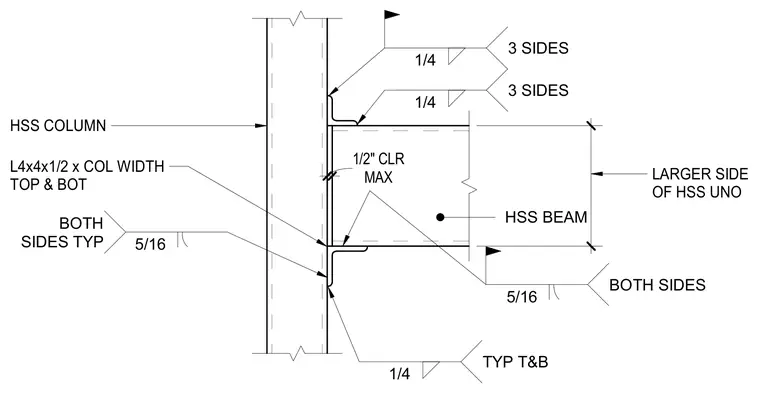

An HSS beam frames into an HSS column using top and bottom L4x4x1/2 angle seats cut to the column width unless noted otherwise. A maximum clearance of one-half inch is maintained between the beam end and the column face. The angles are welded to the HSS column with five-sixteenth inch fillet welds on both sides typically. The HSS beam is secured to the angle seats with one-quarter inch fillet welds along three sides top and bottom typically.
L4x4x1/2 x COL WIDTH TOP & BOT HSS COLUMN LARGER SIDE OF HSS UNO HSS BEAM 5/16 BOTH SIDES TYP 1/4 3 SIDES 5/16 BOTH SIDES 1/4 3 SIDES MAX 1/2" CLR 1/4 TYP T&B .
