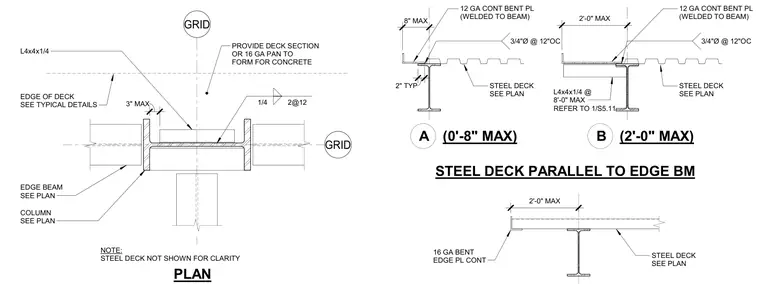

An edge beam sits atop a concrete column with edge beams framing into it from adjacent spans. A continuous 12-gauge bent plate is welded to the beam flange alongside a steel deck parallel to the edge beam. An angle measuring 4x4x1/4 inches is spaced at a maximum of 8 feet on center, with studs at 12 inches on center. A deck section or 16-gauge pan forms the concrete placement at the column line.
PROVIDE DECK SECTION OR 16 GA PAN TO FORM FOR CONCRETE COLUMN SEE PLAN EDGE BEAM SEE PLAN EDGE OF DECK SEE TYPICAL DETAILS L4x4x1/4 NOTE: STEEL DECK NOT SHOWN FOR CLARITY PLAN GRID GRID 1/4 2@12 3" MAX STEEL DECK PARALLEL TO EDGE BM 16 GA BENT EDGE PL CONT STEEL DECK SEE PLAN STEEL DECK SEE PLAN 12 GA CONT BENT PL (WELDED TO BEAM) 2'-0" MAX STEEL DECK SEE PLAN 12 GA CONT BENT PL (WELDED TO BEAM) L4x4x1/4 @ 8'-0" MAX (0'-8" MAX) A (2'-0" MAX) B REFER TO 1/S5.11 3/4"Ø @ 12"OC 3/4"Ø @ 12"OC 8" MAX 2" TYP 2'-0" MAX
