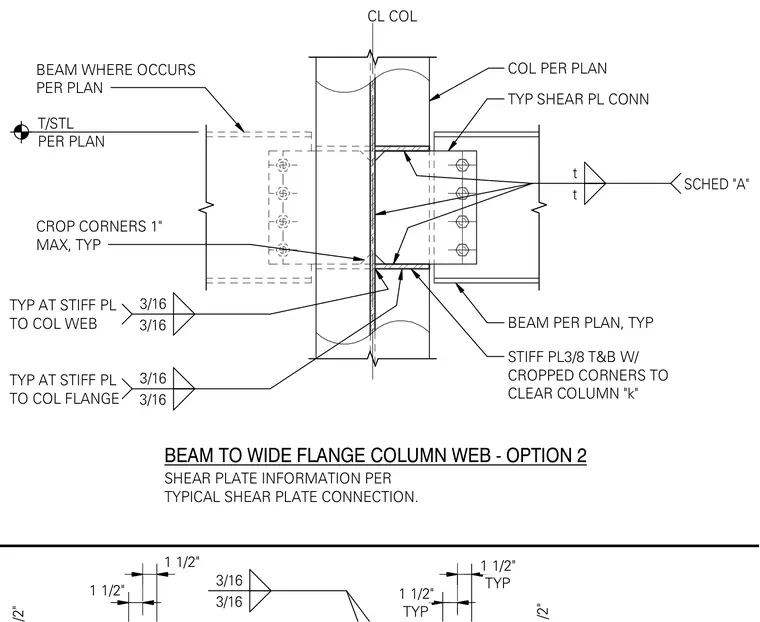

A wide flange beam connects to the web of a wide flange column using a typical shear plate connection sized per plan. Three-eighths-inch thick top and bottom stiffener plates weld to the column web and flanges with three-sixteenth-inch fillet welds, featuring cropped corners up to one inch maximum to clear the column k-distance. An identical beam connection mirrors on the opposite side of the column web with cropped corners.
CL COL COL PER PLAN TYP SHEAR PL CONN BEAM PER PLAN, TYP CROP CORNERS 1" MAX, TYP STIFF PL3/8 T&B W/ CROPPED CORNERS TO CLEAR COLUMN "k" BEAM TO WIDE FLANGE COLUMN WEB - OPTION 2 SHEAR PLATE INFORMATION PER TYPICAL SHEAR PLATE CONNECTION. t t SCHED "A" 3/16 3/16 3/16 3/16 BEAM WHERE OCCURS PER PLAN TYP AT STIFF PL TO COL WEB TYP AT STIFF PL TO COL FLANGE T/STL PER PLAN 3/16 3/16 1 1/2" TYP 1 1/2" 1 1/2" TYP 1 1/2" 1 1/2" TYP 1 1/2" 1 1/2" TYP 1 1/2"
