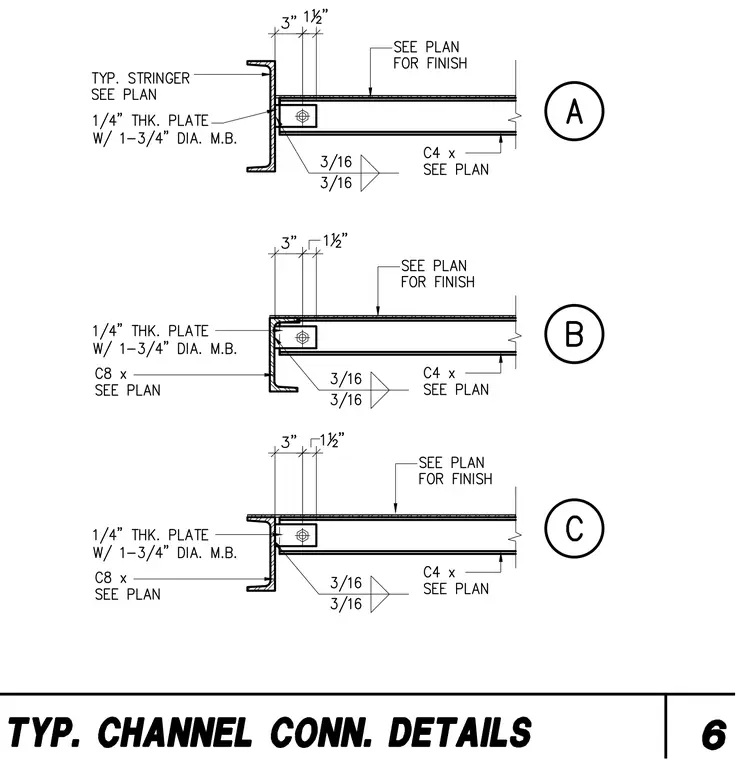

Three alternative channel stringer connection details utilizing a one-quarter-inch thick plate with one three-quarter-inch diameter machine bolt. The assembly features a C4 channel supported by either a typical stringer or a C8 channel sized per plan. Three-sixteenth-inch fillet welds secure the connection components. Finishes and specific member sizes are designated per plan.
