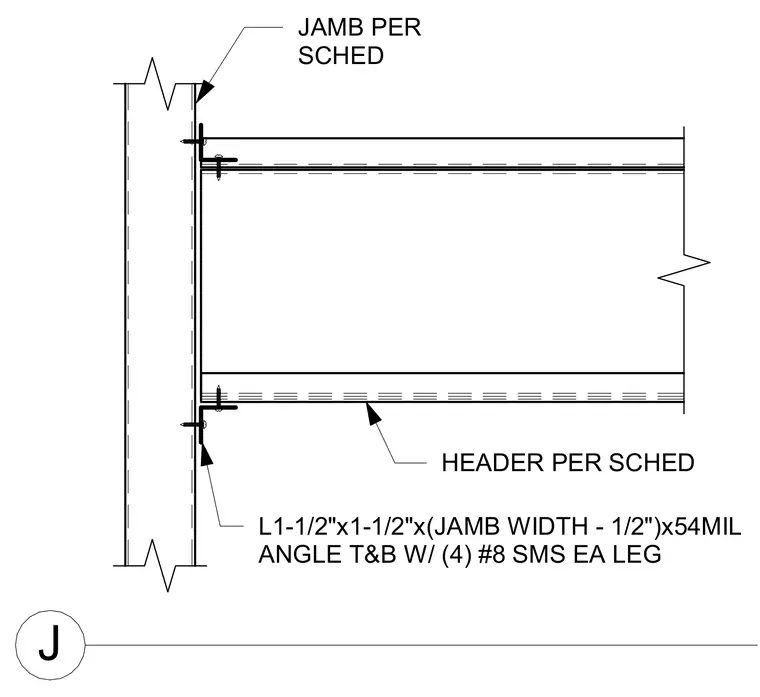

A cold-formed steel header is framed into a vertical jamb stud and secured at both the top and bottom with 1-1/2 inch by 1-1/2 inch by 54-mil clip angles. Each leg of the angle is fastened with four number 8 sheet metal screws. The jamb stud and header sizes are determined per the schedule.
J JAMB PER SCHED HEADER PER SCHED L1-1/2"x1-1/2"x(JAMB WIDTH - 1/2")x54MIL ANGLE T&B W/ (4) #8 SMS EA LEG
