An L6x4x1/4 by two-foot-long long-leg-horizontal kicker angle connects between brackets using two 3/4-inch diameter bolts at each end. The angle is secured to the low metal deck flutes with two 3/4-inch diameter expansion anchors in two places. The assembly is aligned along the centerline of the beam with a typical three-inch spacing and 1-1/2-inch edge distance.

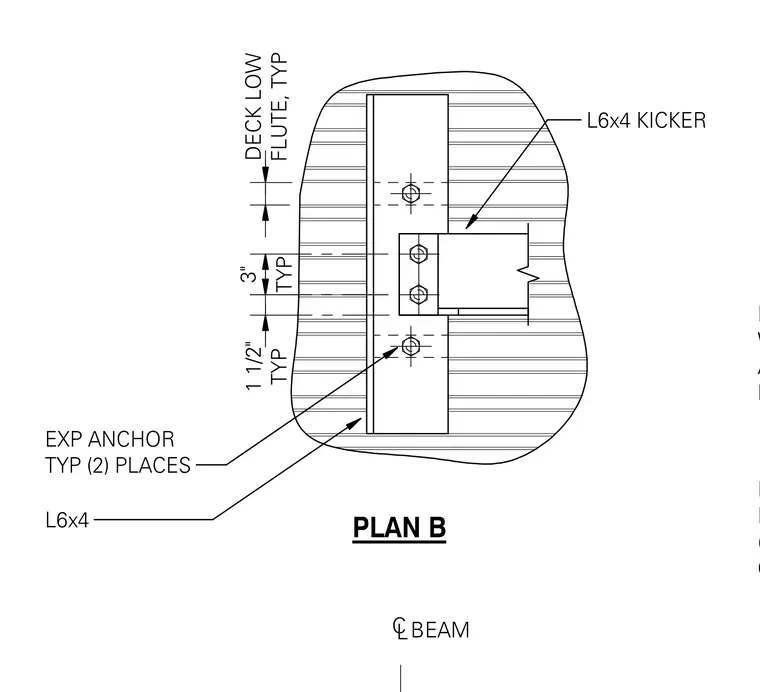

C L BEAM TYP 3" TYP 1 1/2" EXP ANCHOR TYP (2) PLACES L6x4 PLAN B L6x4 KICKER FLUTE, TYP DECK LOW L6x4x1/4 x 2'-0" LLH W/ (2) 3/4" Ø EXPANSION ANCHORS INTO LOW DECK FLUTES L6x4x1/4 LLH KICKER BTWN BRACKETS W/ (2) 3/4" Ø BOLTS EA END COPE 4" LEG EA END
