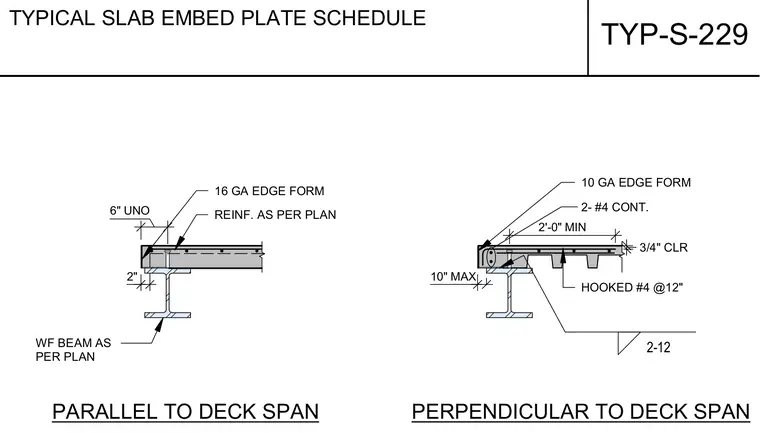

The assembly details concrete slab edges bearing on wide-flange steel beams, orientated both parallel and perpendicular to the metal deck span. Sixteen-gauge or ten-gauge edge forms retain the slab edge, reinforced with continuous number four bars and hooked number four bars spaced at twelve inches on center. Embed plates and reinforcement are placed per structural plans with specified clearances and maximum overhang dimensions.
TYP-S-229 TYPICAL SLAB EMBED PLATE SCHEDULE PARALLEL TO DECK SPAN PERPENDICULAR TO DECK SPAN 10" MAX 2" 6" UNO 16 GA EDGE FORM REINF. AS PER PLAN WF BEAM AS PER PLAN 10 GA EDGE FORM 2- #4 CONT. 3/4" CLR 3/4" CLR 2'-0" MIN HOOKED #4 @12" 2-12
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
