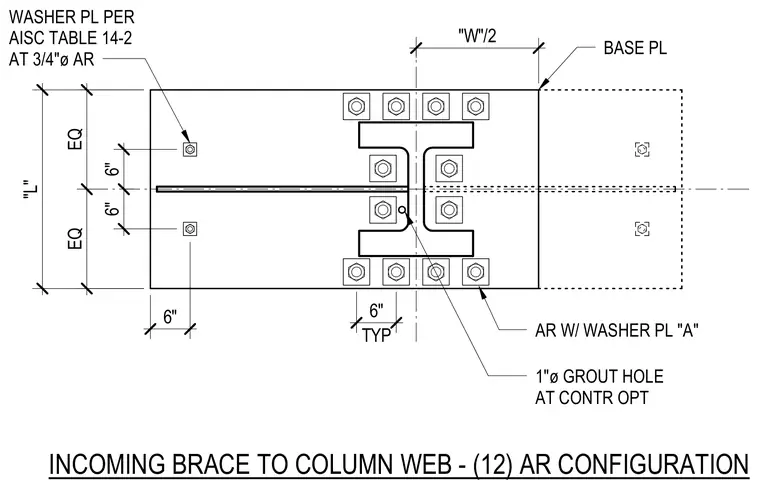

An incoming structural brace connects to the column web using a base plate with a twelve-anchor-rod configuration. The assembly includes washer plates sized per AISC Table 14-2 at three-quarter-inch diameter anchor rods and a one-inch diameter grout hole at the contractor's option. Anchor rods are spaced symmetrically with typical six-inch dimensions.
"W"/2 "L" EQ EQ 6" 6" 6" TYP 6" INCOMING BRACE TO COLUMN WEB - (12) AR CONFIGURATION BASE PL 1"ø GROUT HOLE AT CONTR OPT AR W/ WASHER PL "A" WASHER PL PER AISC TABLE 14-2 AT 3/4"ø AR
