A hollow structural section post measuring 6 inches by 4 inches by 3/8-inch thick is spaced at 8 feet on center along the deck edge. The post is capped with a 1/2-inch plate and connected between posts with a 6-inch by 6-inch by 1/4-inch hollow structural section rail member welded with a 5/16-inch fillet weld. The assembly anchors to a 1/2-inch by 12-inch by 1-foot-0-inch embed plate equipped with four 1/2-inch diameter by 2.5-inch studs at a 9-inch gauge. Additional requirements at the deck edge are referenced on a separate detail.

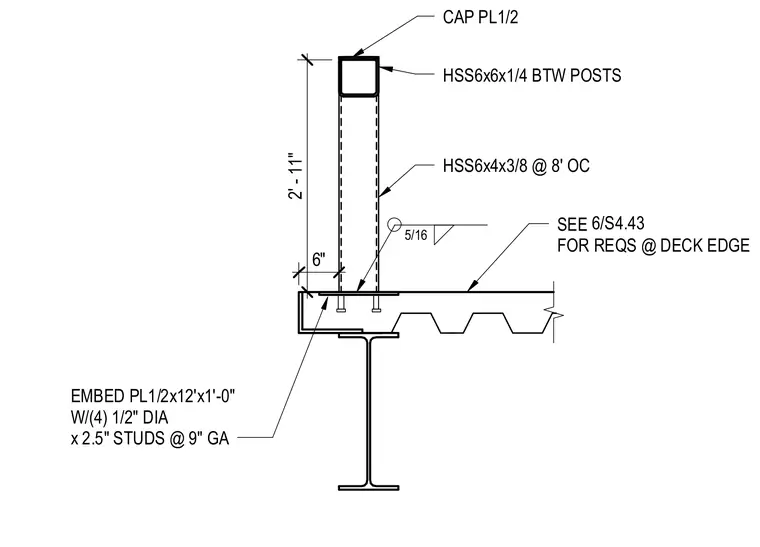

CAP PL1/2 HSS6x4x3/8 @ 8' OC EMBED PL1/2x12'x1'-0" W/(4) 1/2" DIA x 2.5" STUDS @ 9" GA 2' - 11" 6" SEE FOR REQS @ DECK EDGE HSS6x6x1/4 BTW POSTS 5/16 6/S4.43
