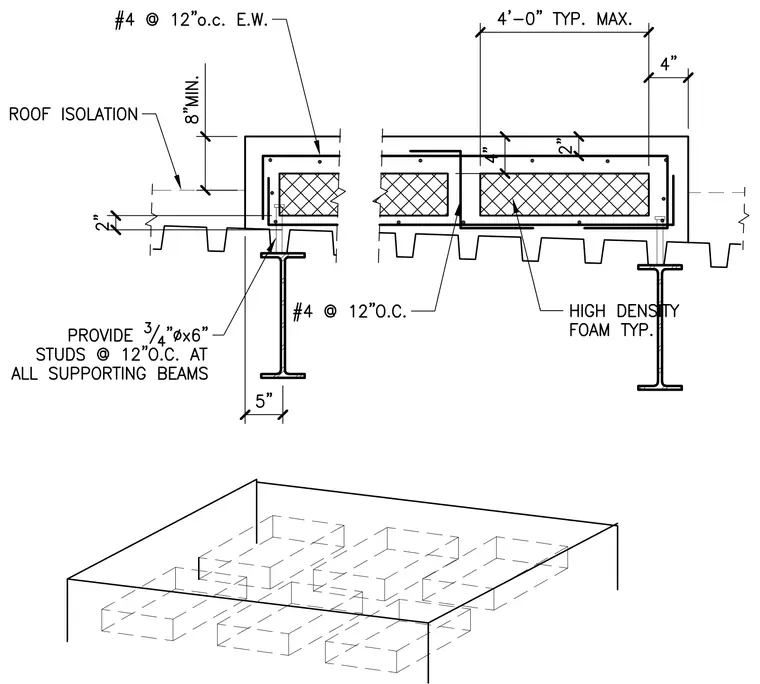

A roof isolation joint assembly crosses over structural steel framing. The concrete curb incorporates high-density foam insulation internally and is reinforced with number four bars spaced at twelve inches on center each way. Three-quarter inch diameter by six inch long shear studs are provided at twelve inches on center at all supporting beams. The assembly maintains a minimum eight inch height for the curb with roof isolation specified above the metal deck.
