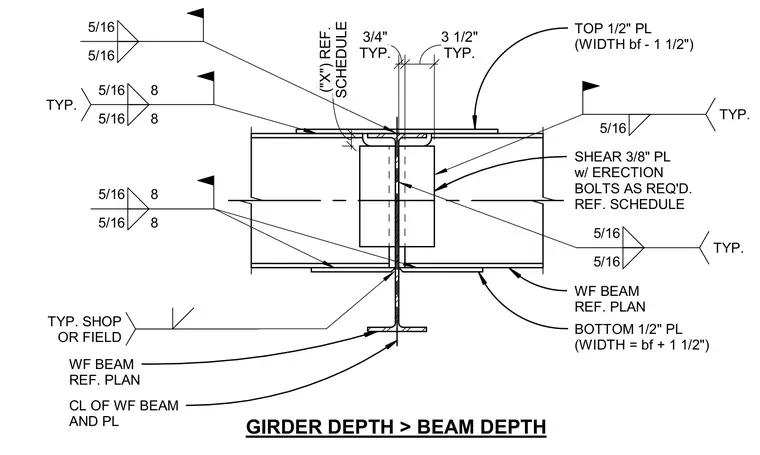

A wide-flange beam connects to a wide-flange girder where the girder depth exceeds the beam depth. A three-eighths-inch shear plate with erection bolts as required is welded to the web. Top and bottom one-half-inch plates span across the connection with five-sixteenths-inch fillet welds. Five-sixteenths-inch fillet welds tie the connection plates to the structural members, designated for typical shop or field execution.
TOP 1/2" PL (WIDTH bf - 1 1/2") SHEAR 3/8" PL w/ ERECTION BOLTS AS REQ'D. REF. SCHEDULE WF BEAM REF. PLAN BOTTOM 1/2" PL (WIDTH = bf + 1 1/2") WF BEAM REF. PLAN CL OF WF BEAM AND PL TYP. SHOP OR FIELD 5/16 5/16 5/16 8 5/16 8 TYP. 5/16 8 5/16 8 5/16 5/16 TYP. 5/16 TYP. GIRDER DEPTH > BEAM DEPTH SCHEDULE ("X") REF. TYP. 3/4" TYP. 3 1/2"
