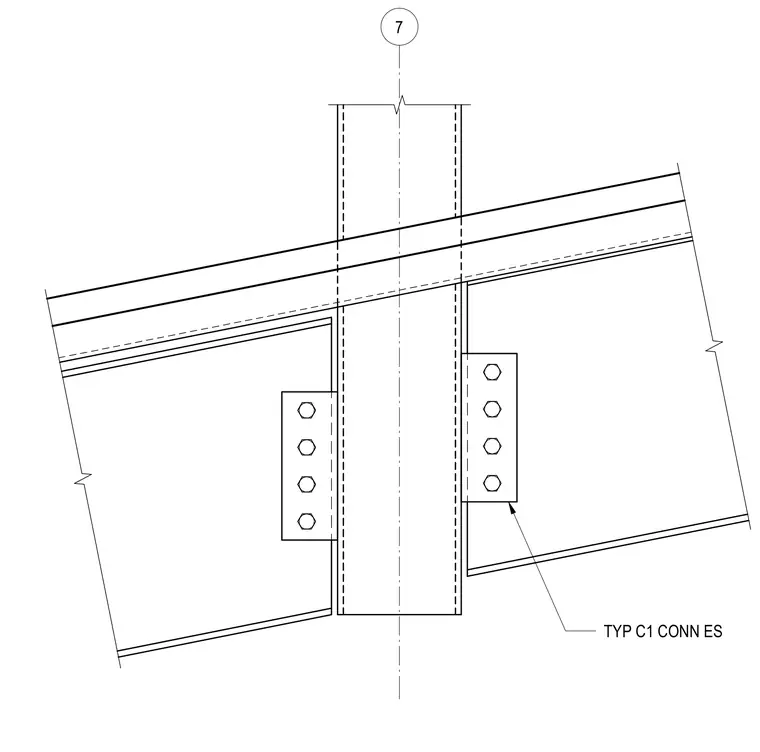

Sloped structural steel beams frame into each side of a vertical column with typical shear tab connections. Four bolts secure the web of each beam to the welded shear plate on the column face. The beams are sloped uniformly across the column centerline.
