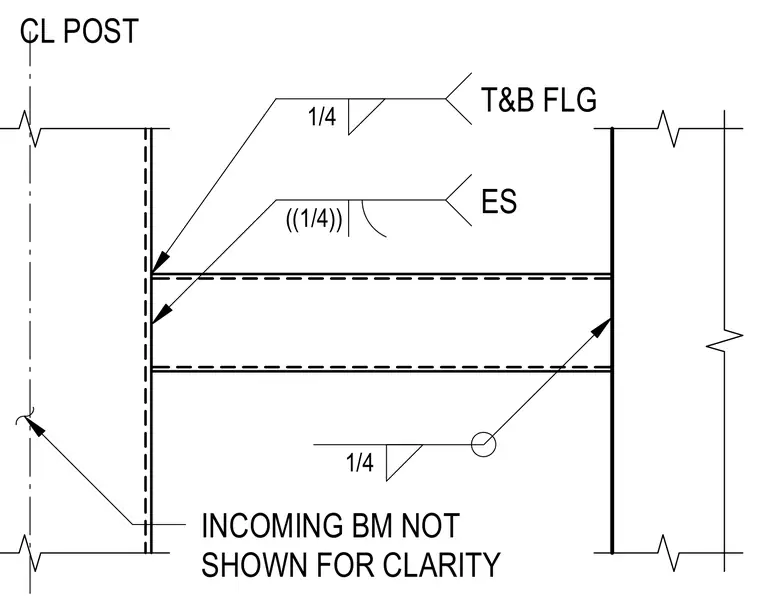

A structural steel beam connects to a column centerline with specified quarter-inch fillet welds at the top and bottom flanges. An end plate weld of one-quarter inch is indicated along the beam web. An incoming beam is omitted from the view for clarity.
