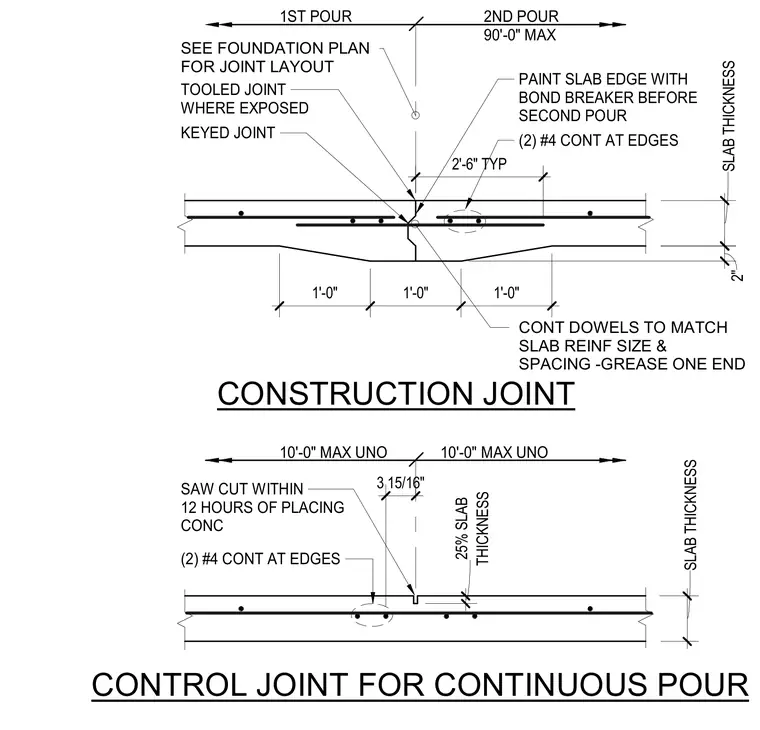

Concrete slab joint configurations for sequential pours. The construction joint features a keyed profile with continuous dowels matching the slab reinforcement size and spacing, with one end greased and a bond breaker painted on the slab edge before the second pour. Two continuous number four rebars are provided at the slab edges. The control joint incorporates a sawn cut measuring twenty-five percent of the slab thickness executed within twelve hours of placing concrete, alongside continuous edge reinforcement.
1ST POUR 2ND POUR 90'-0" MAX SEE FOUNDATION PLAN FOR JOINT LAYOUT TOOLED JOINT WHERE EXPOSED PAINT SLAB EDGE WITH BOND BREAKER BEFORE SECOND POUR (2) #4 CONT AT EDGES SLAB THICKNESS 2" KEYED JOINT 1'-0" 1'-0" 1'-0" CONSTRUCTION JOINT 10'-0" MAX UNO 10'-0" MAX UNO 3 15/16" SAW CUT WITHIN 12 HOURS OF PLACING CONC (2) #4 CONT AT EDGES THICKNESS 25% SLAB SLAB THICKNESS CONTROL JOINT FOR CONTINUOUS POUR 2'-6" TYP CONT DOWELS TO MATCH SLAB REINF SIZE & SPACING -GREASE ONE END
