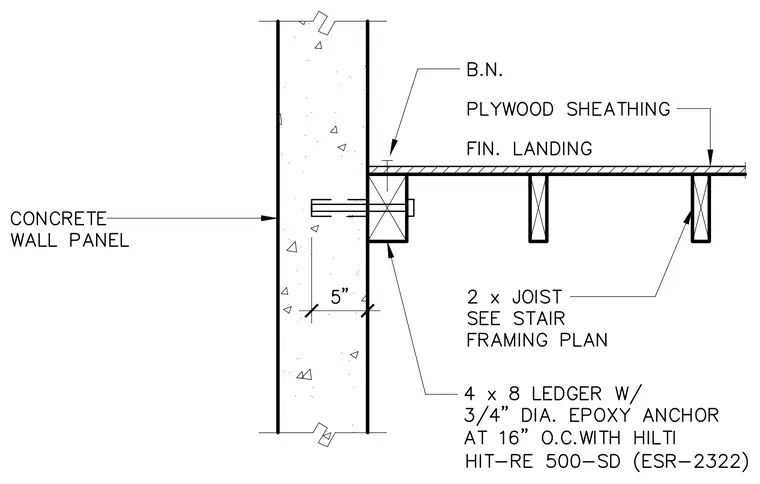

A four-by-eight wood ledger connects to a concrete wall panel using three-quarter-inch-diameter epoxy anchors spaced at sixteen inches on center with Hilti HIT-RE 500-SD. Two-by joists frame into the assembly to support plywood sheathing at the finished landing level.
