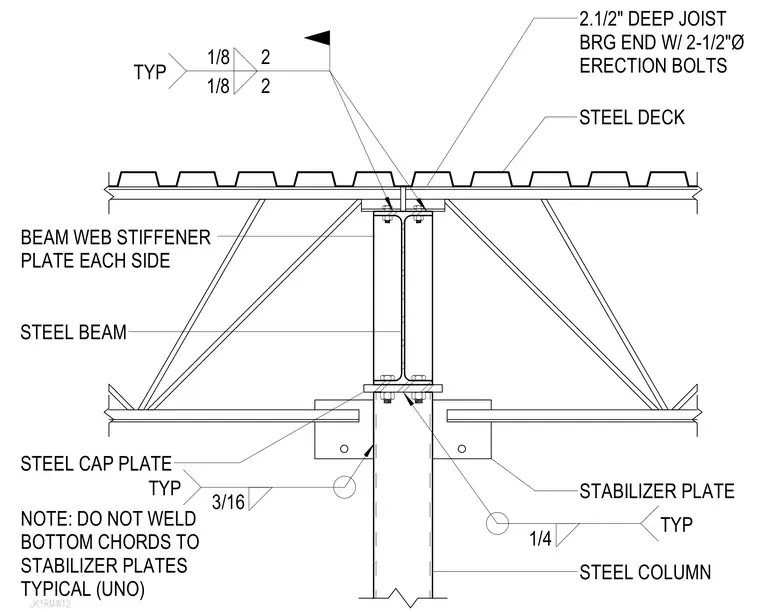

An open-web steel joist bears on a supporting steel beam with a deep joist bearing end secured by two one-half-inch diameter erection bolts. The supporting steel beam rests on a steel column via a steel cap plate. Beam web stiffener plates are welded to each side of the beam web. A steel deck spans across the assembly above. A stabilizer plate is provided at the column connection, with bottom chords left unwelded to the stabilizer plates unless noted otherwise.
JK1RMW12 STEEL BEAM STEEL CAP PLATE STEEL COLUMN 2.1/2" DEEP JOIST BRG END W/ 2-1/2"Ø ERECTION BOLTS STEEL DECK STABILIZER PLATE NOTE: DO NOT WELD BOTTOM CHORDS TO STABILIZER PLATES TYPICAL (UNO) BEAM WEB STIFFENER PLATE EACH SIDE 1/8 2 1/8 2 TYP 3/16 TYP 1/4 TYP
