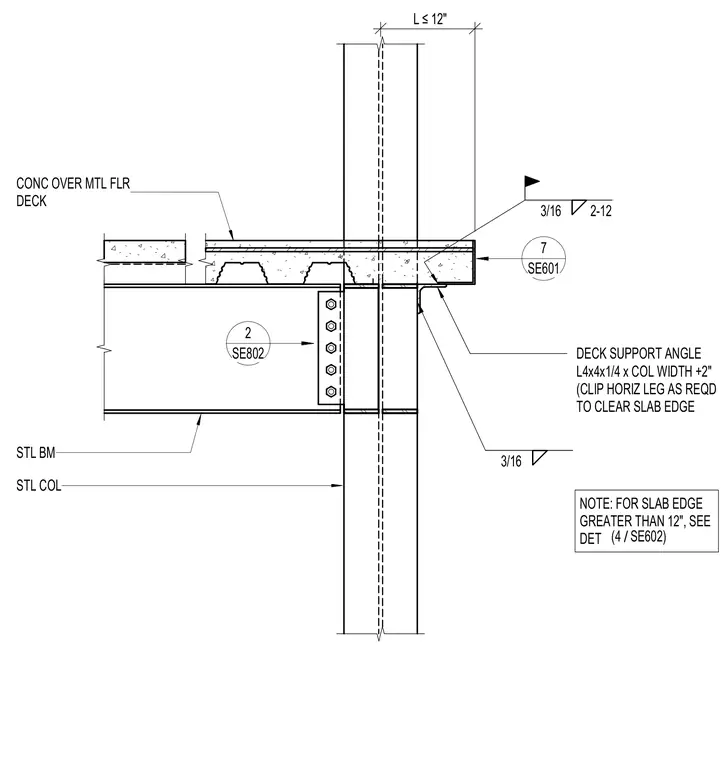

A concrete slab on metal floor deck bears over a steel beam framing into the flange of a steel column via a bolted shear tab connection. A deck support angle sized L4x4x1/4 by the column width plus two inches is welded beneath the slab edge with a three-sixteenths-inch fillet weld, with the horizontal leg clipped as required to clear the slab edge. A note specifies that for slab edges greater than twelve inches, detail four on sheet SE602 applies.
DECK SUPPORT ANGLE L4x4x1/4 x COL WIDTH +2" (CLIP HORIZ LEG AS REQD TO CLEAR SLAB EDGE STL COL STL BM CONC OVER MTL FLR DECK NOTE: FOR SLAB EDGE GREATER THAN 12", SEE DET L ≤12" 2 SE802 7 SE601 / (4 SE602) 3/16 3/16 2-12
