Structural · S-823Q8

Roof Framing at Elevator Support Column

Materials

Steel

Elements

Columns Beams Roofs Decks Connections / Plates

Connections

Shear Tab / Single Plate

About this detail

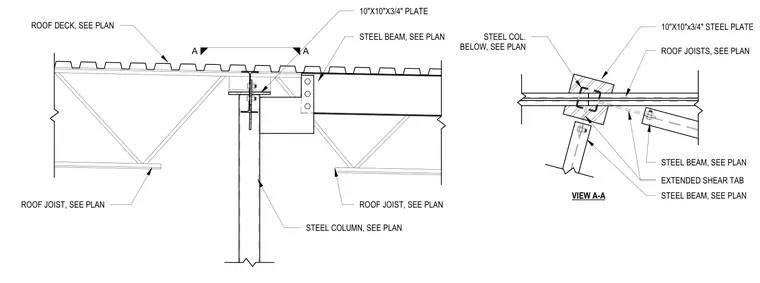

A ten-inch by ten-inch by three-quarter-inch steel plate is located at the top of the steel column beneath the roof deck. A steel beam connects to the column using an extended shear tab with bolted fasteners. Roof joists and roof deck frame into the assembly as sized per plan. View A-A provides the overhead framing layout and relative positions of the steel column, beams, and joists.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
