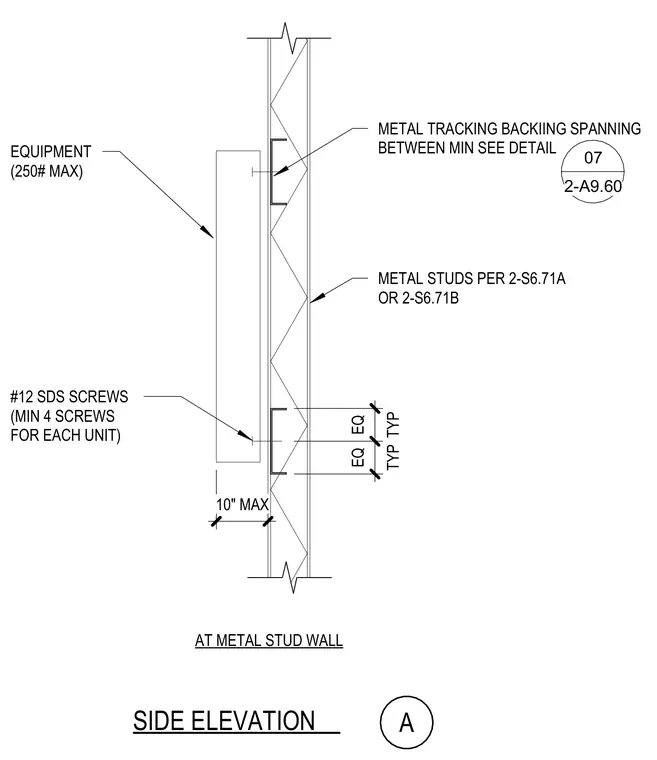

Equipment weighing up to 250 pounds is mounted to a cold-formed steel stud wall using metal tracking backing that spans between the studs. The equipment projects a maximum of 10 inches from the face of the wall and is secured with number 12 self-drilling screws, using a minimum of 4 screws for each unit. The metal stud framing is installed per structural specifications, with backing tracks spaced equally to support the load.
METAL TRACKING BACKIING SPANNING BETWEEN MIN SEE DETAIL EQUIPMENT (250# MAX) #12 SDS SCREWS (MIN 4 SCREWS FOR EACH UNIT) METAL STUDS PER 2-S6.71A OR 2-S6.71B SIDE ELEVATION AT METAL STUD WALL A TYP EQ TYP EQ 07 2-A9.60 10" MAX
